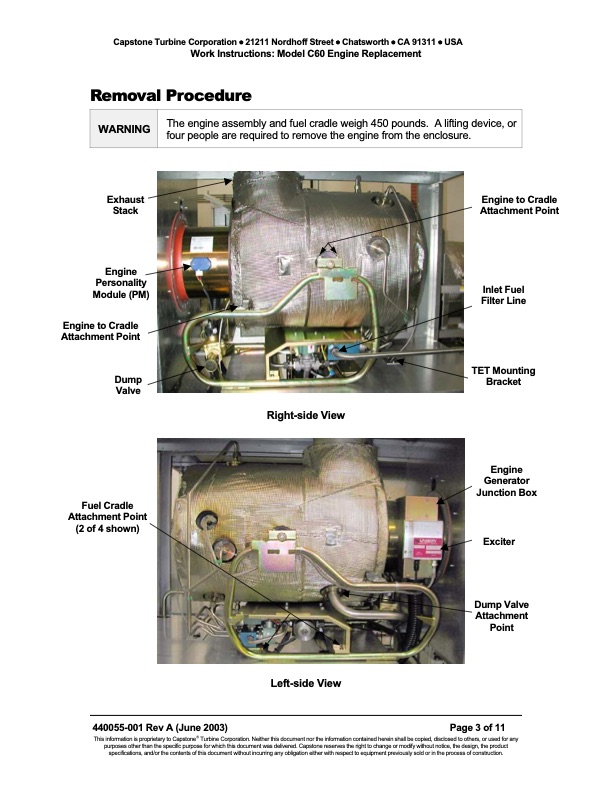

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Work Instructions: Model C60 Engine Replacement Removal Procedure WARNING The engine assembly and fuel cradle weigh 450 pounds. A lifting device, or four people are required to remove the engine from the enclosure. Exhaust Stack Engine Personality Module (PM) Engine to Cradle Attachment Point Dump Valve Fuel Cradle Attachment Point (2 of 4 shown) Right-side View Engine to Cradle Attachment Point Inlet Fuel Filter Line TET Mounting Bracket Engine Generator Junction Box Exciter Dump Valve Attachment Point Page 3 of 11 Left-side View 440055-001 Rev A (June 2003) This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Work Instructions Model C60 Engine Replacement
