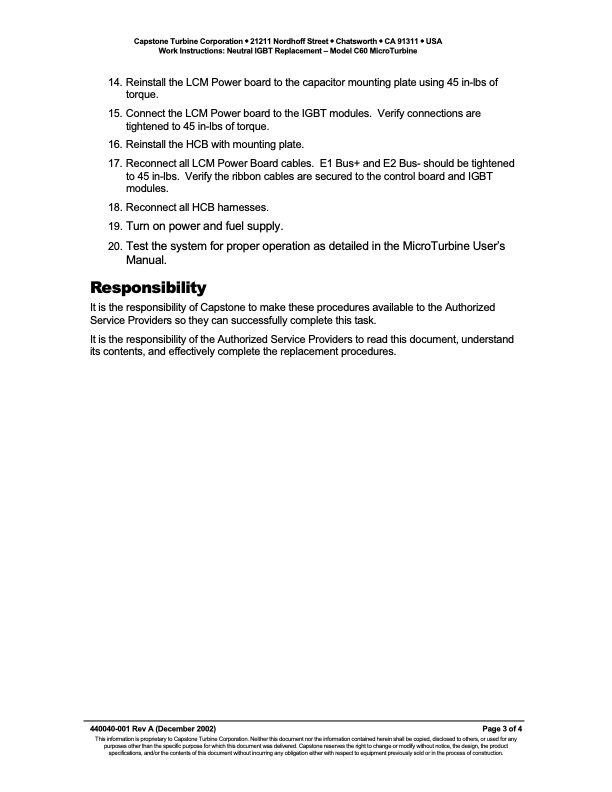

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Work Instructions: Neutral IGBT Replacement – Model C60 MicroTurbine 14. Reinstall the LCM Power board to the capacitor mounting plate using 45 in-lbs of torque. 15. Connect the LCM Power board to the IGBT modules. Verify connections are tightened to 45 in-lbs of torque. 16. Reinstall the HCB with mounting plate. 17. Reconnect all LCM Power Board cables. E1 Bus+ and E2 Bus- should be tightened to 45 in-lbs. Verify the ribbon cables are secured to the control board and IGBT modules. 18. Reconnect all HCB harnesses. 19. Turn on power and fuel supply. 20. Test the system for proper operation as detailed in the MicroTurbine User’s Manual. Responsibility It is the responsibility of Capstone to make these procedures available to the Authorized Service Providers so they can successfully complete this task. It is the responsibility of the Authorized Service Providers to read this document, understand its contents, and effectively complete the replacement procedures. 440040-001 Rev A (December 2002) Page 3 of 4 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Work Instructions LCM Neutral IGBT Module Replacement Capstone Model C60 MicroTurbine
