Text from PDF Page: 006

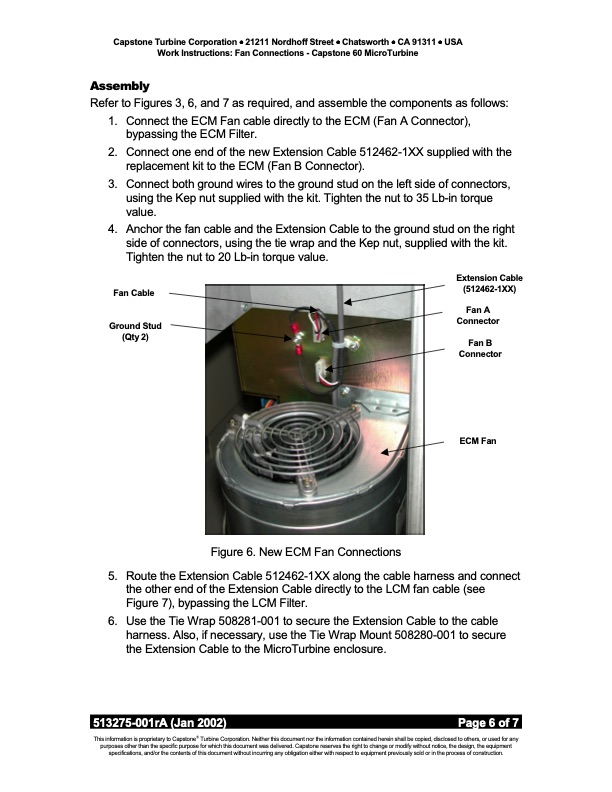

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Work Instructions: Fan Connections - Capstone 60 MicroTurbine Assembly Refer to Figures 3, 6, and 7 as required, and assemble the components as follows: 1. ConnecttheECMFancabledirectlytotheECM(FanAConnector), bypassing the ECM Filter. 2. ConnectoneendofthenewExtensionCable512462-1XXsuppliedwiththe replacement kit to the ECM (Fan B Connector). 3. Connectbothgroundwirestothegroundstudontheleftsideofconnectors, using the Kep nut supplied with the kit. Tighten the nut to 35 Lb-in torque value. 4. AnchorthefancableandtheExtensionCabletothegroundstudontheright side of connectors, using the tie wrap and the Kep nut, supplied with the kit. Tighten the nut to 20 Lb-in torque value. Extension Cable (512462-1XX) Fan Cable Ground Stud (Qty 2) Fan A Connector Fan B Connector ECM Fan Figure 6. New ECM Fan Connections 5. RoutetheExtensionCable512462-1XXalongthecableharnessandconnect the other end of the Extension Cable directly to the LCM fan cable (see Figure 7), bypassing the LCM Filter. 6. UsetheTieWrap508281-001tosecuretheExtensionCabletothecable harness. Also, if necessary, use the Tie Wrap Mount 508280-001 to secure the Extension Cable to the MicroTurbine enclosure. 513275-001rA (Jan 2002) Page 6 of 7. This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Work Instructions Fan Connections - Capstone 60 MicroTurbine
