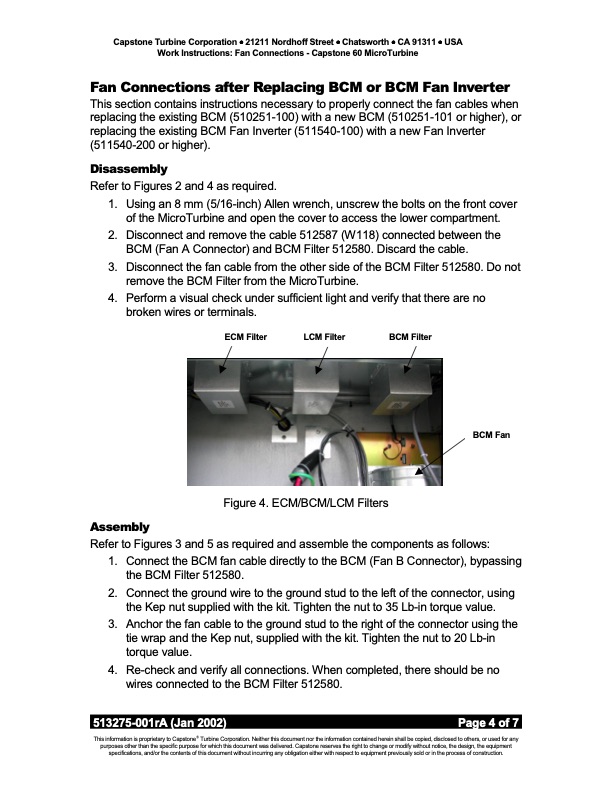

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Work Instructions: Fan Connections - Capstone 60 MicroTurbine Fan Connections after Replacing BCM or BCM Fan Inverter This section contains instructions necessary to properly connect the fan cables when replacing the existing BCM (510251-100) with a new BCM (510251-101 or higher), or replacing the existing BCM Fan Inverter (511540-100) with a new Fan Inverter (511540-200 or higher). Disassembly Refer to Figures 2 and 4 as required. 1. Usingan8mm(5/16-inch)Allenwrench,unscrewtheboltsonthefrontcover of the MicroTurbine and open the cover to access the lower compartment. 2. Disconnectandremovethecable512587(W118)connectedbetweenthe BCM (Fan A Connector) and BCM Filter 512580. Discard the cable. 3. DisconnectthefancablefromtheothersideoftheBCMFilter512580.Donot remove the BCM Filter from the MicroTurbine. 4. Performavisualcheckundersufficientlightandverifythatthereareno broken wires or terminals. Assembly ECM Filter LCM Filter BCM Filter Refer to Figures 3 and 5 as required and assemble the components as follows: 1. ConnecttheBCMfancabledirectlytotheBCM(FanBConnector),bypassing the BCM Filter 512580. 2. Connectthegroundwiretothegroundstudtotheleftoftheconnector,using the Kep nut supplied with the kit. Tighten the nut to 35 Lb-in torque value. 3. Anchorthefancabletothegroundstudtotherightoftheconnectorusingthe tie wrap and the Kep nut, supplied with the kit. Tighten the nut to 20 Lb-in torque value. 4. Re-checkandverifyallconnections.Whencompleted,thereshouldbeno wires connected to the BCM Filter 512580. 513275-001rA (Jan 2002) Page 4 of 7. This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. BCM Fan Figure 4. ECM/BCM/LCM FiltersPDF Image | Work Instructions Fan Connections - Capstone 60 MicroTurbine
