PDF Publication Title:
Text from PDF Page: 015

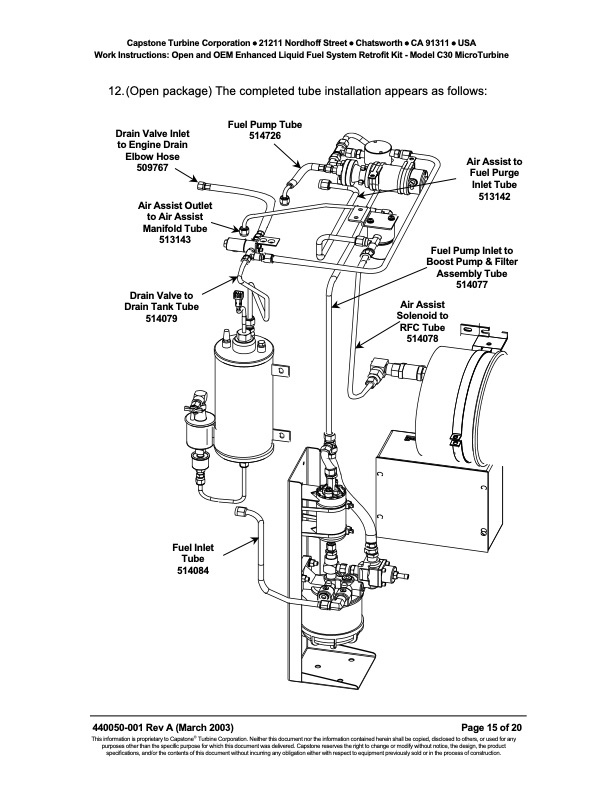

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Work Instructions: Open and OEM Enhanced Liquid Fuel System Retrofit Kit - Model C30 MicroTurbine 12.(Open package) The completed tube installation appears as follows: Drain Valve Inlet to Engine Drain Elbow Hose 509767 Air Assist Outlet to Air Assist Manifold Tube 513143 Drain Valve to Drain Tank Tube 514079 Fuel Pump Tube 514726 Fuel Inlet Tube 514084 Page 15 of 20 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. 440050-001 Rev A (March 2003) Air Assist to Fuel Purge Inlet Tube 513142 Fuel Pump Inlet to Boost Pump & Filter Assembly Tube 514077 Air Assist Solenoid to RFC Tube 514078PDF Image | Work Instructions Enhanced Liquid Fuel System Retrofit Kit Installation – Open and OEM Package Configurations - Model C30 MicroTurbine Systems
PDF Search Title:
Work Instructions Enhanced Liquid Fuel System Retrofit Kit Installation – Open and OEM Package Configurations - Model C30 MicroTurbine SystemsOriginal File Name Searched:
440050 Enhanced Liquid Fuel Kit Mar03.pdfDIY PDF Search: Google It | Yahoo | Bing
