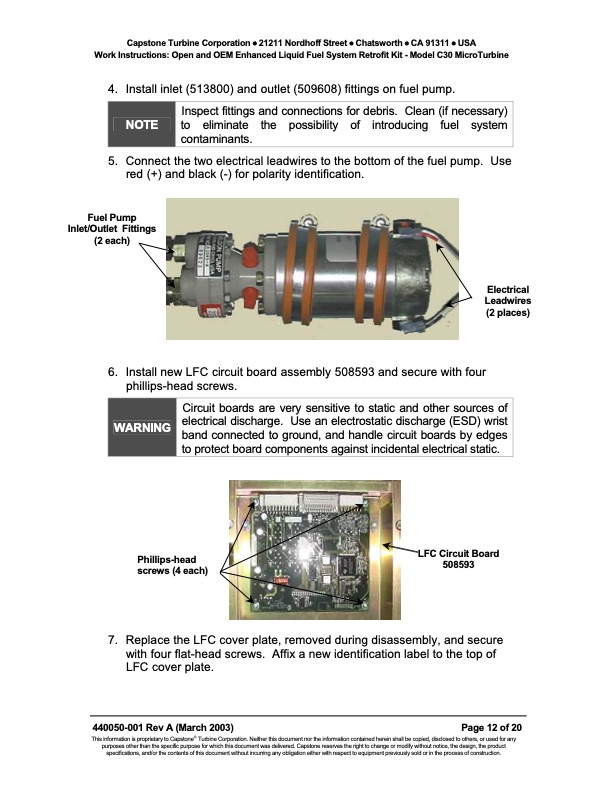

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Work Instructions: Open and OEM Enhanced Liquid Fuel System Retrofit Kit - Model C30 MicroTurbine 4. Installinlet(513800)andoutlet(509608)fittingsonfuelpump. 5. Connect the two electrical leadwires to the bottom of the fuel pump. Use red (+) and black (-) for polarity identification. Fuel Pump Inlet/Outlet Fittings (2 each) Electrical Leadwires (2 places) 6. InstallnewLFCcircuitboardassembly508593andsecurewithfour phillips-head screws. NOTE Inspect fittings and connections for debris. Clean (if necessary) to eliminate the possibility of introducing fuel system contaminants. WARNING Circuit boards are very sensitive to static and other sources of electrical discharge. Use an electrostatic discharge (ESD) wrist band connected to ground, and handle circuit boards by edges to protect board components against incidental electrical static. Phillips-head screws (4 each) LFC Circuit Board 508593 7. Replace the LFC cover plate, removed during disassembly, and secure with four flat-head screws. Affix a new identification label to the top of LFC cover plate. 440050-001 Rev A (March 2003) Page 12 of 20 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Work Instructions Enhanced Liquid Fuel System Retrofit Kit Installation – Open and OEM Package Configurations - Model C30 MicroTurbine Systems
