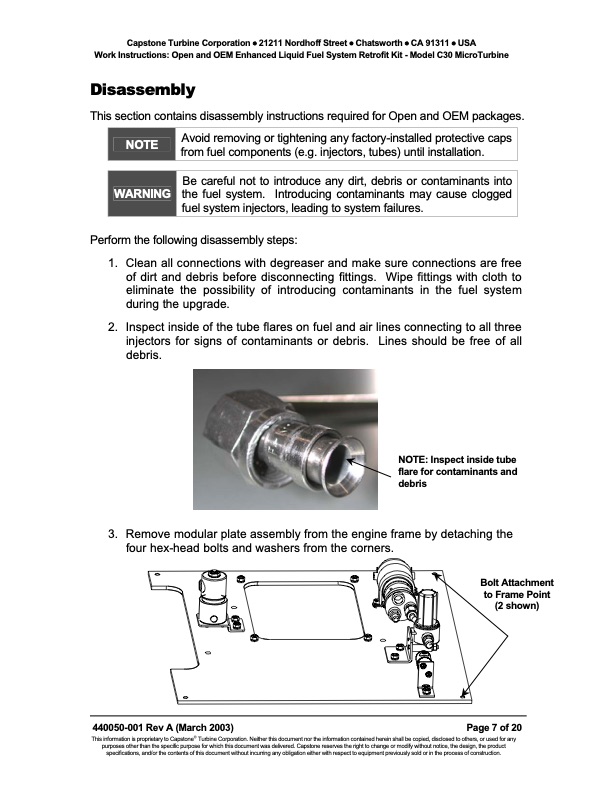

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Work Instructions: Open and OEM Enhanced Liquid Fuel System Retrofit Kit - Model C30 MicroTurbine Disassembly This section contains disassembly instructions required for Open and OEM packages. Avoid removing or tightening any factory-installed protective caps from fuel components (e.g. injectors, tubes) until installation. NOTE WARNING the fuel system. Introducing contaminants may cause clogged Be careful not to introduce any dirt, debris or contaminants into fuel system injectors, leading to system failures. Perform the following disassembly steps: 1. Clean all connections with degreaser and make sure connections are free of dirt and debris before disconnecting fittings. Wipe fittings with cloth to eliminate the possibility of introducing contaminants in the fuel system during the upgrade. 2. Inspectinsideofthetubeflaresonfuelandairlinesconnectingtoallthree injectors for signs of contaminants or debris. Lines should be free of all debris. NOTE: Inspect inside tube flare for contaminants and debris 3. Remove modular plate assembly from the engine frame by detaching the four hex-head bolts and washers from the corners. Bolt Attachment to Frame Point (2 shown) 440050-001 Rev A (March 2003) Page 7 of 20 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Work Instructions Enhanced Liquid Fuel System Retrofit Kit Installation – Open and OEM Package Configurations - Model C30 MicroTurbine Systems
