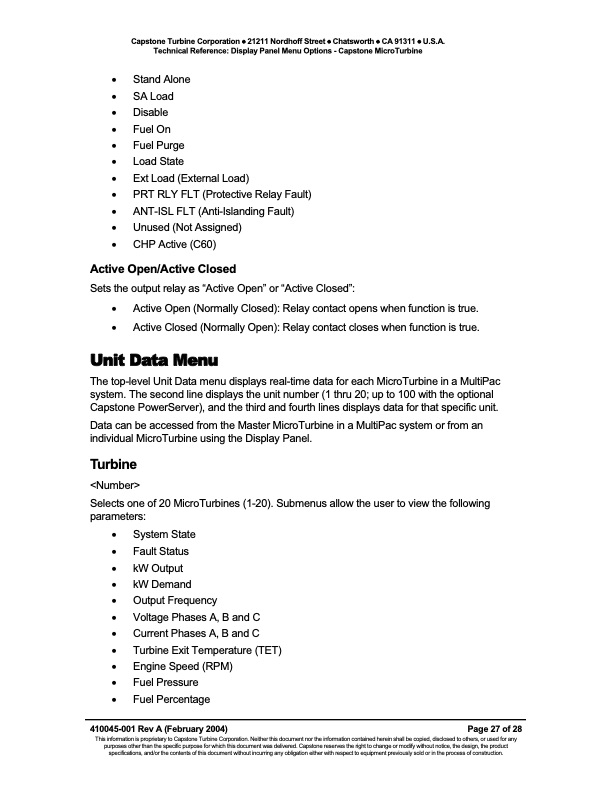

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • U.S.A. Technical Reference: Display Panel Menu Options - Capstone MicroTurbine • Stand Alone • SA Load • Disable • Fuel On • Fuel Purge • Load State • Ext Load (External Load) • PRT RLY FLT (Protective Relay Fault) • ANT-ISL FLT (Anti-Islanding Fault) • Unused (Not Assigned) • CHP Active (C60) Active Open/Active Closed Sets the output relay as “Active Open” or “Active Closed”: • Active Open (Normally Closed): Relay contact opens when function is true. • Active Closed (Normally Open): Relay contact closes when function is true. Unit Data Menu The top-level Unit Data menu displays real-time data for each MicroTurbine in a MultiPac system. The second line displays the unit number (1 thru 20; up to 100 with the optional Capstone PowerServer), and the third and fourth lines displays data for that specific unit. Data can be accessed from the Master MicroTurbine in a MultiPac system or from an individual MicroTurbine using the Display Panel. Turbine Selects one of 20 MicroTurbines (1-20). Submenus allow the user to view the following parameters: • System State • Fault Status • kW Output • kW Demand • Output Frequency • Voltage Phases A, B and C • Current Phases A, B and C • Turbine Exit Temperature (TET) • Engine Speed (RPM) • Fuel Pressure • Fuel Percentage 410045-001 Rev A (February 2004) Page 27 of 28 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.
