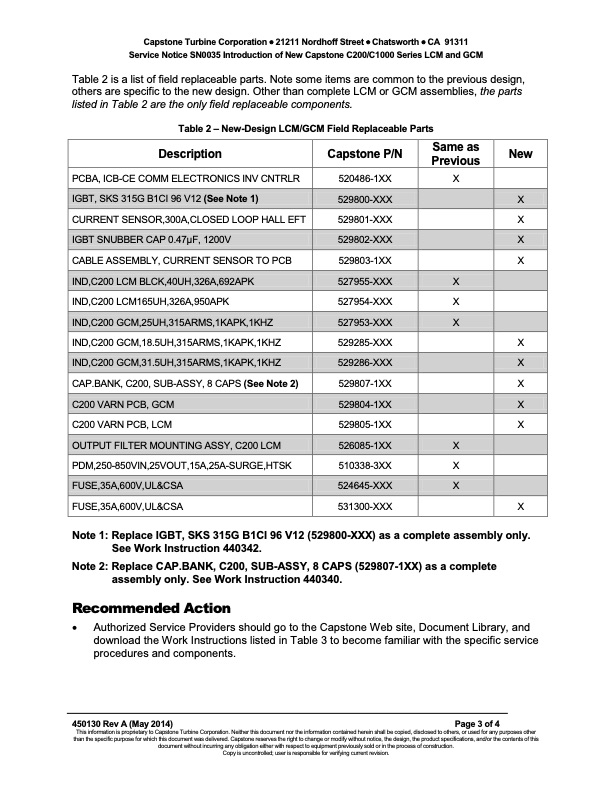

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 Service Notice SN0035 Introduction of New Capstone C200/C1000 Series LCM and GCM Table 2 is a list of field replaceable parts. Note some items are common to the previous design, others are specific to the new design. Other than complete LCM or GCM assemblies, the parts listed in Table 2 are the only field replaceable components. Table 2 – New-Design LCM/GCM Field Replaceable Parts Description PCBA, ICB-CE COMM ELECTRONICS INV CNTRLR CURRENT SENSOR,300A,CLOSED LOOP HALL EFT CABLE ASSEMBLY, CURRENT SENSOR TO PCB IND,C200 LCM165UH,326A,950APK IND,C200 GCM,18.5UH,315ARMS,1KAPK,1KHZ CAP.BANK, C200, SUB-ASSY, 8 CAPS (See Note 2) C200 VARN PCB, LCM Capstone P/N 520486-1XX 529801-XXX 529803-1XX 527954-XXX 529285-XXX 529807-1XX 529805-1XX Same as New Previous X X X X X X X X X IGBT, SKS 315G B1CI 96 V12 (See Note 1) 529800-XXX X IGBT SNUBBER CAP 0.47μF, 1200V 529802-XXX X IND,C200 LCM BLCK,40UH,326A,692APK 527955-XXX X IND,C200 GCM,25UH,315ARMS,1KAPK,1KHZ 527953-XXX X IND,C200 GCM,31.5UH,315ARMS,1KAPK,1KHZ 529286-XXX X C200 VARN PCB, GCM 529804-1XX X OUTPUT FILTER MOUNTING ASSY, C200 LCM 526085-1XX X PDM,250-850VIN,25VOUT,15A,25A-SURGE,HTSK 510338-3XX FUSE,35A,600V,UL&CSA 531300-XXX FUSE,35A,600V,UL&CSA 524645-XXX X Note 1: Replace IGBT, SKS 315G B1CI 96 V12 (529800-XXX) as a complete assembly only. See Work Instruction 440342. Note 2: Replace CAP.BANK, C200, SUB-ASSY, 8 CAPS (529807-1XX) as a complete assembly only. See Work Instruction 440340. Recommended Action • Authorized Service Providers should go to the Capstone Web site, Document Library, and download the Work Instructions listed in Table 3 to become familiar with the specific service procedures and components. 450130 Rev A (May 2014) Page 3 of 4 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Copy is uncontrolled; user is responsible for verifying current revision.PDF Image | Service Notice SN0035 Introduction of New Capstone C200/C1000 Series LCM and GCM
