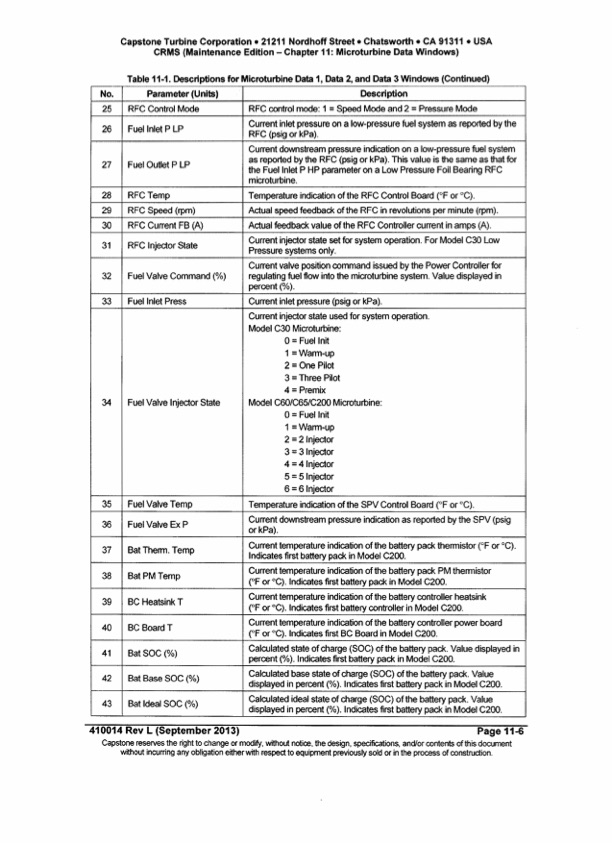

Capstone Turbine Corporation. 21211 Nordhoff Street. Chatsworth. CA 91311 • USA CRMS (Maintenance Edition - Chapter 11: Microturbine Data Windows) Table 11-1. Descriptions for Microturbine Data 1, Data 2, and Data 3 Windows (Continued) Current inlet pressure on a low-pressure fuel system as reported by the RFC (psig or kPa). Current downstream pressure indication on a low-pressure fuel system as reported by the RFC (psig or kPa). This value is the same as that for the Fuel Inlet P HP parameter on a Low Pressure Foil Bearing RFC microturbine. Temperature indication of the RFC Control Board (OFor 0C). Actual speed feedback of the RFC in revolutions per minute (rpm). Actual feedback value of the RFC Controller current in amps (A). Current injector state set for system operation. For Model C30 Low Pressure systems only. Current valve position command issued by the Power Controller for regulating fuel flow into the microturbine system. Value displayed in percent (%). Current inlet pressure (psig or kPa). Current injector state used for system operation. Model C30 Microturbine: 0= Fuellnit 1 = Warm-up 2 = One Pilot 3 = Three Pilot 4 = Premix Model C60/C65/C200 Microturbine: 0= Fuellnit 1 = Warm-up 2 = 2 Injector 3 = 3 Injector 4 = 4 Injector 5 = 5 Injector 6 = 6 Injector Temperature indication of the SPV Control Board (OFor DC). Current downstream pressure indication as reported by the SPV (psig or kPa). Current temperature indication of the battery pack thermistor (CF or 0C). Indicates first battery pack in Model C200. Current temperature indication of the battery pack PM thermistor (OFor "C), Indicates first battery pack in Model C200 . No. Parameter (Units) Description 25 RFC Control Mode RFC control mode: 1 = Speed Mode and 2 = Pressure Mode 26 Fuel Inlet P LP 27 Fuel Outlet P LP 28 RFCTemp 29 RFC Speed (rpm) 30 RFC Current FB (A) 31 RFC Injector State 32 Fuel Valve Command (%) 33 Fuel Inlet Press 34 Fuel Valve Injector State 35 Fuel Valve Temp 36 Fuel Valve Ex P 37 Bat Therm. Temp 38 Bat PM Temp .. 39 BC Heatsink T Current temperature indication of the battery controller heatsink eF or DC).Indicates first battery controller in Model C200. Current temperature indication of the battery controller power board (OFor 0C). Indicates first BC Board in Model C200. Calculated state of charge (SOC) of the battery pack. Value displayed in percent (%). Indicates first battery pack in Model C200. Calculated base state of charge (SaC) of the battery pack. Value displayed in percent (%). Indicates first battery pack in Model C200. Calculated ideal state of charge (SOC) of the battery pack. Value displayed in percent (%). Indicates first battery pack in Model C200. 40 BC Board T 41 Bat SOC (%) 42 Bat Base SOC (%) 43 Bat Ideal SOC (%) 410014 Rev L (September 2013) Page 11-6 Capstone reserves the right to change or modify, without notice, the design, specifications, ancVorcontents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.
