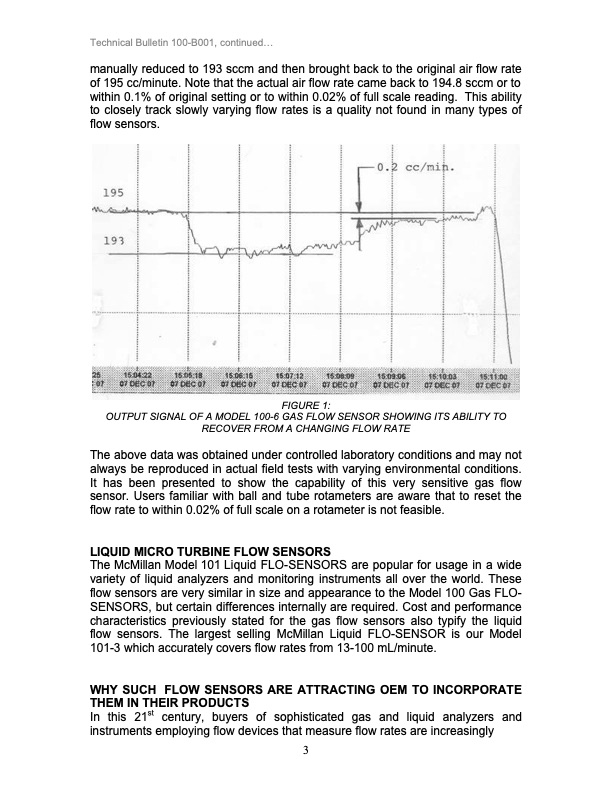

Technical Bulletin 100-B001, continued... manually reduced to 193 sccm and then brought back to the original air flow rate of 195 cc/minute. Note that the actual air flow rate came back to 194.8 sccm or to within 0.1% of original setting or to within 0.02% of full scale reading. This ability to closely track slowly varying flow rates is a quality not found in many types of flow sensors. FIGURE 1: OUTPUT SIGNAL OF A MODEL 100-6 GAS FLOW SENSOR SHOWING ITS ABILITY TO RECOVER FROM A CHANGING FLOW RATE The above data was obtained under controlled laboratory conditions and may not always be reproduced in actual field tests with varying environmental conditions. It has been presented to show the capability of this very sensitive gas flow sensor. Users familiar with ball and tube rotameters are aware that to reset the flow rate to within 0.02% of full scale on a rotameter is not feasible. LIQUID MICRO TURBINE FLOW SENSORS The McMillan Model 101 Liquid FLO-SENSORS are popular for usage in a wide variety of liquid analyzers and monitoring instruments all over the world. These flow sensors are very similar in size and appearance to the Model 100 Gas FLO- SENSORS, but certain differences internally are required. Cost and performance characteristics previously stated for the gas flow sensors also typify the liquid flow sensors. The largest selling McMillan Liquid FLO-SENSOR is our Model 101-3 which accurately covers flow rates from 13-100 mL/minute. WHY SUCH FLOW SENSORS ARE ATTRACTING OEM TO INCORPORATE THEM IN THEIR PRODUCTS In this 21st century, buyers of sophisticated gas and liquid analyzers and instruments employing flow devices that measure flow rates are increasingly 3PDF Image | McMillan Bulletin: 100-B001N MICRO TURBINE FLO-SENSORS WITH A 20 YEAR HISTORY OF PROVIDING A EXCELLENT ALTERNATIVE TO BALL AND TUBE ROTAMETERS
