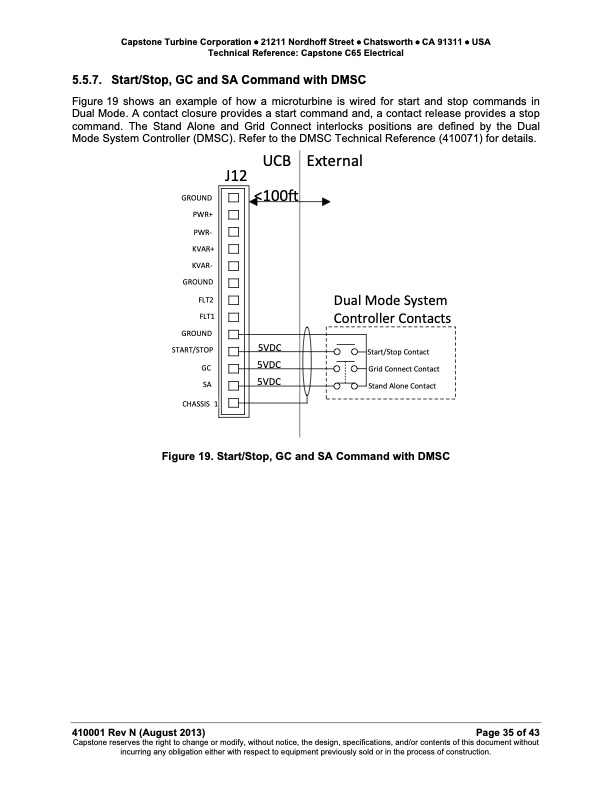

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Technical Reference: Capstone C65 Electrical 5.5.7. Start/Stop, GC and SA Command with DMSC Figure 19 shows an example of how a microturbine is wired for start and stop commands in Dual Mode. A contact closure provides a start command and, a contact release provides a stop command. The Stand Alone and Grid Connect interlocks positions are defined by the Dual Mode System Controller (DMSC). Refer to the DMSC Technical Reference (410071) for details. J12 KVAR+ KVAR‐ GROUND FLT2 FLT1 GROUND START/STOP GC SA CHASSIS 1 UCB External GROUND PWR+ PWR‐ <100ft 5VDC Dual Mode System Controller Contacts 5VDC 5VDC Figure 19. Start/Stop, GC and SA Command with DMSC Start/Stop Contact Grid Connect Contact Stand Alone Contact 410001 Rev N (August 2013) Page 35 of 43 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Model C65 Electrical
