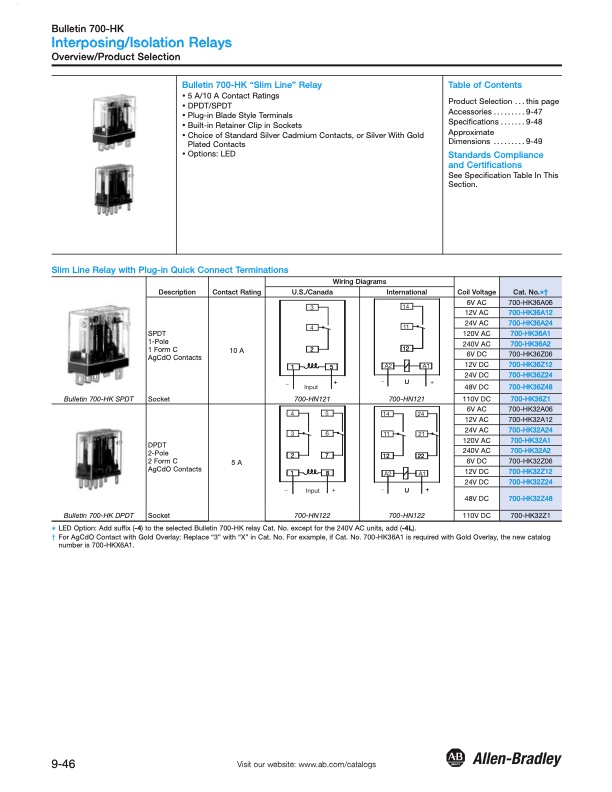

Bulletin 700-HK Interposing/Isolation Relays Overview/Product Selection Προδυχτ Σελεχτιον Slim Line Relay with Plug-in Quick Connect Terminations Table of Contents Product Selection . . . this page Accessories . . . . . . . . . 9-47 Specifications . . . . . . . 9-48 Approximate Dimensions .........9-49 Standards Compliance and Certifications See Specification Table In This Section. Coil Voltage Bulletin 700-HK “Slim Line” Relay y5 A/10 A Contact Ratings y DPDT/SPDT yPlug-in Blade Style Terminals yBuilt-in Retainer Clip in Sockets yChoice of Standard Silver Cadmium Contacts, or Silver With Gold Plated Contacts yOptions: LED Description SPDT 1-Pole 1 Form C AgCdO Contacts Socket DPDT 2-Pole 2 Form C AgCdO Contacts Socket Contact Rating Wiring Diagrams U.S./Canada International Cat. No.✶† 700-HK36A06 10 A 6V AC 12V AC 24V AC 120V AC 240V AC 6V DC 12V DC 24V DC 48V DC 110V DC 700-HN121 700-HN121 700-HK36A12 700-HK36A24 700-HK36A1 700-HK36A2 700-HK36Z06 700-HK36Z12 700-HK36Z24 700-HK36Z48 700-HK36Z1 5A 6V AC 12V AC 24V AC 120V AC 240V AC 6V DC 12V DC 24V DC 48V DC 110V DC 700-HK32A1 700-HK32A2 700-HK32Z06 700-HK32Z12 700-HK32Z24 700-HK32Z48 700-HN122 700-HN122 700-HK32A06 700-HK32A12 700-HK32A24 700-HK32Z1 Bulletin 700-HK SPDT Bulletin 700-HK DPDT ✶ LED Option: Add suffix (-4) to the selected Bulletin 700-HK relay Cat. No. except for the 240V AC units, add (-4L). † For AgCdO Contact with Gold Overlay: Replace “3” with “X” in Cat. No. For example, if Cat. No. 700-HK36A1 is required with Gold Overlay, the new catalog number is 700-HKX6A1. 9-46 Visit our website: www.ab.com/catalogsPDF Image | ST PETERSBURG TABLE OF CONTENTS
