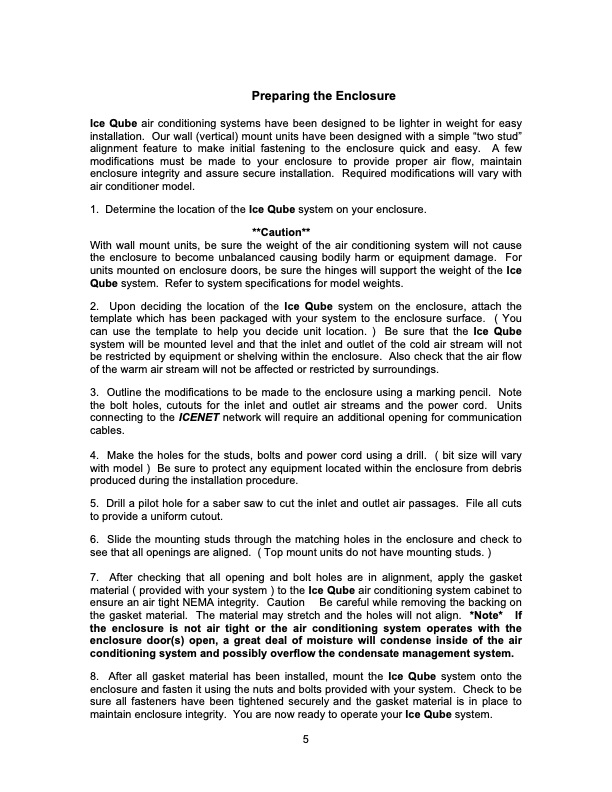

Preparing the Enclosure Ice Qube air conditioning systems have been designed to be lighter in weight for easy installation. Our wall (vertical) mount units have been designed with a simple “two stud” alignment feature to make initial fastening to the enclosure quick and easy. A few modifications must be made to your enclosure to provide proper air flow, maintain enclosure integrity and assure secure installation. Required modifications will vary with air conditioner model. 1. Determine the location of the Ice Qube system on your enclosure. **Caution** With wall mount units, be sure the weight of the air conditioning system will not cause the enclosure to become unbalanced causing bodily harm or equipment damage. For units mounted on enclosure doors, be sure the hinges will support the weight of the Ice Qube system. Refer to system specifications for model weights. 2. Upon deciding the location of the Ice Qube system on the enclosure, attach the template which has been packaged with your system to the enclosure surface. ( You can use the template to help you decide unit location. ) Be sure that the Ice Qube system will be mounted level and that the inlet and outlet of the cold air stream will not be restricted by equipment or shelving within the enclosure. Also check that the air flow of the warm air stream will not be affected or restricted by surroundings. 3. Outline the modifications to be made to the enclosure using a marking pencil. Note the bolt holes, cutouts for the inlet and outlet air streams and the power cord. Units connecting to the ICENET network will require an additional opening for communication cables. 4. Make the holes for the studs, bolts and power cord using a drill. ( bit size will vary with model ) Be sure to protect any equipment located within the enclosure from debris produced during the installation procedure. 5. Drill a pilot hole for a saber saw to cut the inlet and outlet air passages. File all cuts to provide a uniform cutout. 6. Slide the mounting studs through the matching holes in the enclosure and check to see that all openings are aligned. ( Top mount units do not have mounting studs. ) 7. After checking that all opening and bolt holes are in alignment, apply the gasket material ( provided with your system ) to the Ice Qube air conditioning system cabinet to ensure an air tight NEMA integrity. *Caution* Be careful while removing the backing on the gasket material. The material may stretch and the holes will not align. *Note* If the enclosure is not air tight or the air conditioning system operates with the enclosure door(s) open, a great deal of moisture will condense inside of the air conditioning system and possibly overflow the condensate management system. 8. After all gasket material has been installed, mount the Ice Qube system onto the enclosure and fasten it using the nuts and bolts provided with your system. Check to be sure all fasteners have been tightened securely and the gasket material is in place to maintain enclosure integrity. You are now ready to operate your Ice Qube system. 5PDF Image | ST PETERSBURG TABLE OF CONTENTS
