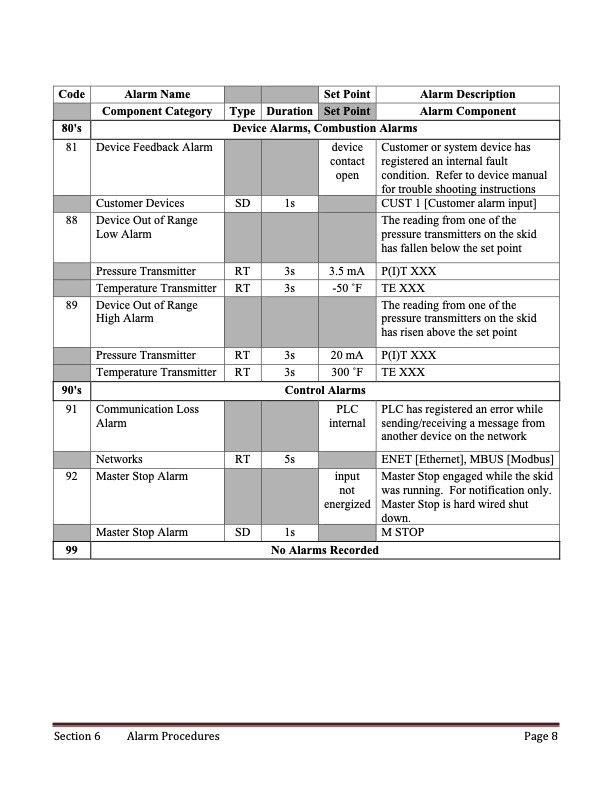

Code 80's Alarm Name Set Point Alarm Description Alarm Component Device Alarms, Combustion Alarms Component Category Type Duration Set Point 81 Device Feedback Alarm Customer Devices SD 1s device contact open Customer or system device has registered an internal fault condition. Refer to device manual for trouble shooting instructions 88 Device Out of Range Low Alarm The reading from one of the pressure transmitters on the skid has fallen below the set point Pressure Transmitter Temperature Transmitter Pressure Transmitter Temperature Transmitter RT 3s RT 3s RT 3s RT 3s 3.5 mA -50 ̊F 20 mA 300 ̊F CUST 1 [Customer alarm input] P(I)T XXX TE XXX P(I)T XXX TE XXX ENET [Ethernet], MBUS [Modbus] M STOP Device Out of Range High Alarm The reading from one of the pressure transmitters on the skid has risen above the set point 89 90's Control Alarms 91 Communication Loss Alarm Networks RT 5s PLC internal PLC has registered an error while sending/receiving a message from another device on the network 92 Master Stop Alarm input not energized Master Stop engaged while the skid was running. For notification only. Master Stop is hard wired shut down. Master Stop Alarm SD 1s 99 No Alarms Recorded Section 6 Alarm Procedures Page 8PDF Image | ST PETERSBURG TABLE OF CONTENTS
