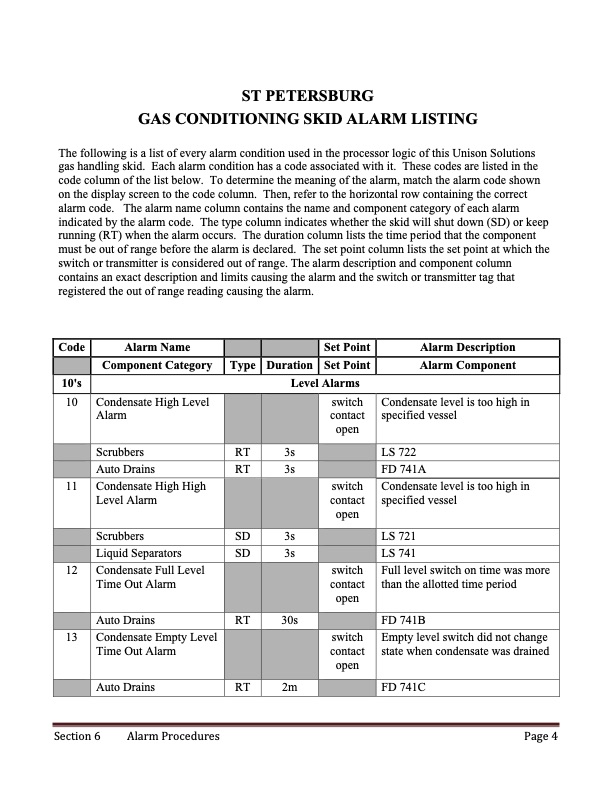

ST PETERSBURG GAS CONDITIONING SKID ALARM LISTING The following is a list of every alarm condition used in the processor logic of this Unison Solutions gas handling skid. Each alarm condition has a code associated with it. These codes are listed in the code column of the list below. To determine the meaning of the alarm, match the alarm code shown on the display screen to the code column. Then, refer to the horizontal row containing the correct alarm code. The alarm name column contains the name and component category of each alarm indicated by the alarm code. The type column indicates whether the skid will shut down (SD) or keep running (RT) when the alarm occurs. The duration column lists the time period that the component must be out of range before the alarm is declared. The set point column lists the set point at which the switch or transmitter is considered out of range. The alarm description and component column contains an exact description and limits causing the alarm and the switch or transmitter tag that registered the out of range reading causing the alarm. Code 10's Alarm Name Component Category Type Set Point Duration Set Point Level Alarms Alarm Description Alarm Component LS 722 FD 741A LS 721 LS 741 FD 741B FD 741C 10 Condensate High Level Alarm Scrubbers RT 3s Auto Drains RT 3s switch contact open Condensate level is too high in specified vessel 11 Condensate High High Level Alarm Scrubbers SD 3s Liquid Separators SD 3s switch contact open Condensate level is too high in specified vessel 12 Condensate Full Level Time Out Alarm Full level switch on time was more than the allotted time period Auto Drains RT 30s switch contact open 13 Condensate Empty Level Time Out Alarm Auto Drains RT 2m switch contact open Empty level switch did not change state when condensate was drained Section 6 Alarm Procedures Page 4PDF Image | ST PETERSBURG TABLE OF CONTENTS
