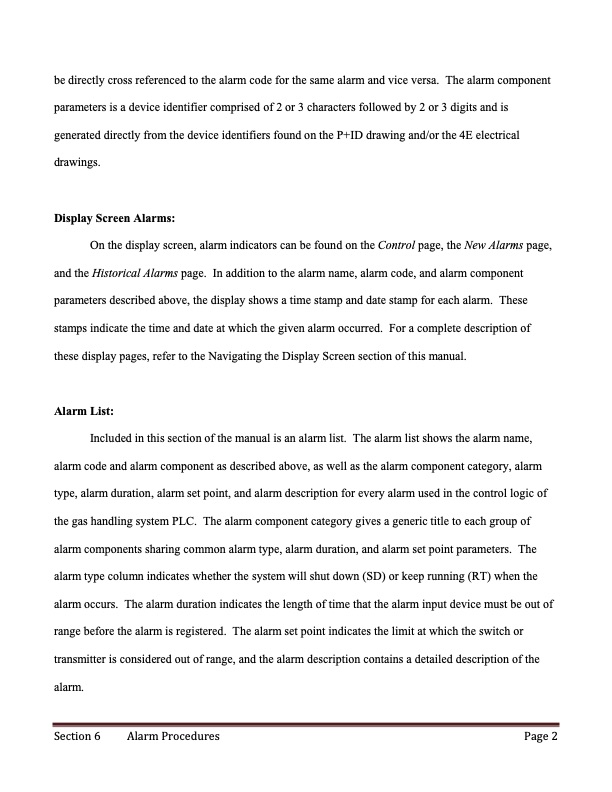

be directly cross referenced to the alarm code for the same alarm and vice versa. The alarm component parameters is a device identifier comprised of 2 or 3 characters followed by 2 or 3 digits and is generated directly from the device identifiers found on the P+ID drawing and/or the 4E electrical drawings. Display Screen Alarms: On the display screen, alarm indicators can be found on the Control page, the New Alarms page, and the Historical Alarms page. In addition to the alarm name, alarm code, and alarm component parameters described above, the display shows a time stamp and date stamp for each alarm. These stamps indicate the time and date at which the given alarm occurred. For a complete description of these display pages, refer to the Navigating the Display Screen section of this manual. Alarm List: Included in this section of the manual is an alarm list. The alarm list shows the alarm name, alarm code and alarm component as described above, as well as the alarm component category, alarm type, alarm duration, alarm set point, and alarm description for every alarm used in the control logic of the gas handling system PLC. The alarm component category gives a generic title to each group of alarm components sharing common alarm type, alarm duration, and alarm set point parameters. The alarm type column indicates whether the system will shut down (SD) or keep running (RT) when the alarm occurs. The alarm duration indicates the length of time that the alarm input device must be out of range before the alarm is registered. The alarm set point indicates the limit at which the switch or transmitter is considered out of range, and the alarm description contains a detailed description of the alarm. Section 6 Alarm Procedures Page 2PDF Image | ST PETERSBURG TABLE OF CONTENTS
