Text from PDF Page: 005

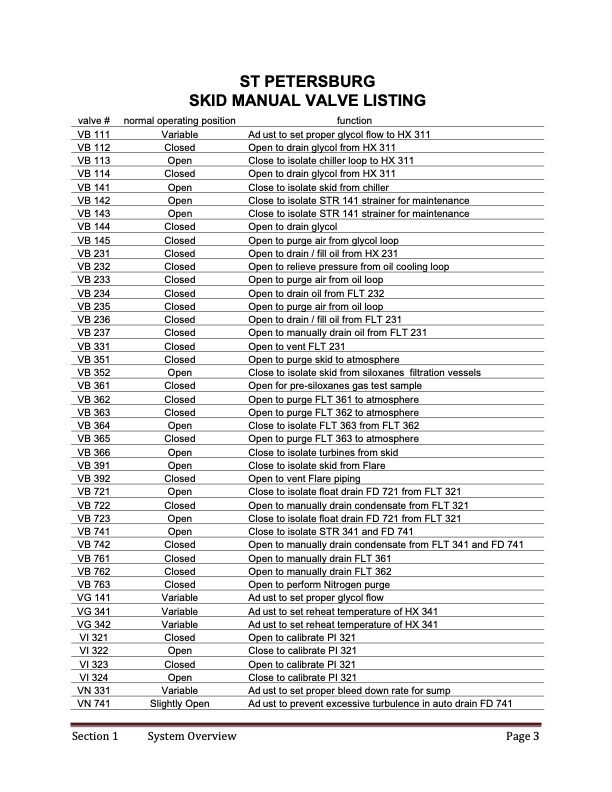

valve # VB 111 VB 112 VB 113 VB 114 VB 141 VB 142 VB 143 VB 144 VB 145 VB 231 VB 232 VB 233 VB 234 VB 235 VB 236 VB 237 VB 331 VB 351 VB 352 VB 361 VB 362 VB 363 VB 364 VB 365 VB 366 VB 391 VB 392 VB 721 VB 722 VB 723 VB 741 VB 742 VB 761 VB 762 VB 763 VG 141 VG 341 VG 342 VI 321 VI 322 VI 323 VI 324 VN 331 VN 741 normal operating Variable position function Adjust to set proper glycol flow to HX 311 Open to drain glycol from HX 311 Close to isolate chiller loop to HX 311 Open to drain glycol from HX 311 Close to isolate skid from chiller Close to isolate STR 141 strainer for maintenance Close to isolate STR 141 strainer for maintenance Open to drain glycol Open to purge air from glycol loop Open to drain / fill oil from HX 231 Open to relieve pressure from oil cooling loop Open to purge air from oil loop Open to drain oil from FLT 232 Open to purge air from oil loop Open to drain / fill oil from FLT 231 Open to manually drain oil from FLT 231 Open to vent FLT 231 Open to purge skid to atmosphere Close to isolate skid from siloxanes filtration vessels Open for pre-siloxanes gas test sample Open to purge FLT 361 to atmosphere Open to purge FLT 362 to atmosphere Close to isolate FLT 363 from FLT 362 Open to purge FLT 363 to atmosphere Close to isolate turbines from skid Close to isolate skid from Flare Open to vent Flare piping Close to isolate float drain FD 721 from FLT 321 Open to manually drain condensate from FLT 321 Close to isolate float drain FD 721 from FLT 321 Close to isolate STR 341 and FD 741 Open to manually drain condensate from FLT 341 and FD 741 Open to manually drain FLT 361 Open to manually drain FLT 362 Open to perform Nitrogen purge Adjust to set proper glycol flow Adjust to set reheat temperature of HX 341 Adjust to set reheat temperature of HX 341 Open to calibrate PI 321 Close to calibrate PI 321 Open to calibrate PI 321 Close to calibrate PI 321 Adjust to set proper bleed down rate for sump Adjust to prevent excessive turbulence in auto drain FD 741 ST PETERSBURG SKID MANUAL VALVE LISTING Closed Open Closed Open Open Open Closed Closed Closed Closed Closed Closed Closed Closed Closed Closed Closed Open Closed Closed Closed Open Closed Open Open Closed Open Closed Open Open Closed Closed Closed Closed Variable Variable Variable Closed Open Closed Open Variable Slightly Open Section 1 System Overview Page 3PDF Image | ST PETERSBURG TABLE OF CONTENTS
