PDF Publication Title:
Text from PDF Page: 051

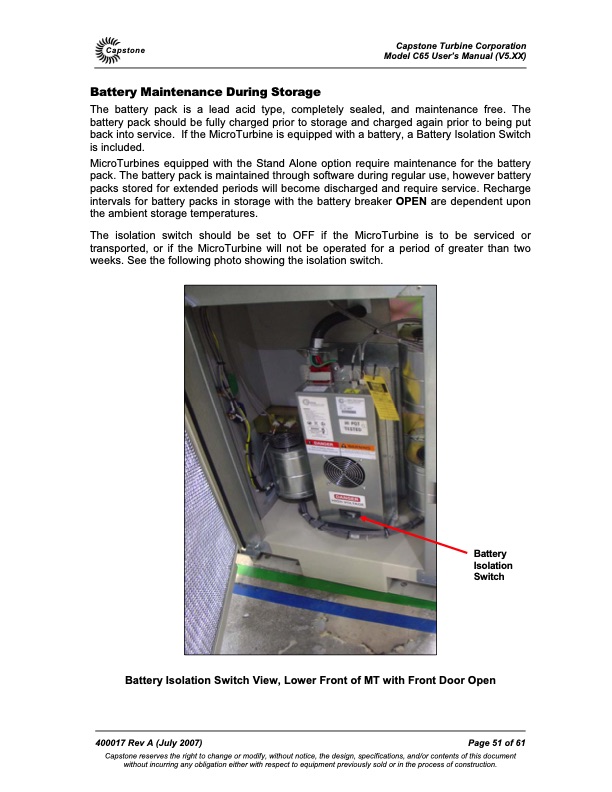

Capstone Battery Maintenance During Storage Capstone Turbine Corporation Model C65 User’s Manual (V5.XX) The battery pack is a lead acid type, completely sealed, and maintenance free. The battery pack should be fully charged prior to storage and charged again prior to being put back into service. If the MicroTurbine is equipped with a battery, a Battery Isolation Switch is included. MicroTurbines equipped with the Stand Alone option require maintenance for the battery pack. The battery pack is maintained through software during regular use, however battery packs stored for extended periods will become discharged and require service. Recharge intervals for battery packs in storage with the battery breaker OPEN are dependent upon the ambient storage temperatures. The isolation switch should be set to OFF if the MicroTurbine is to be serviced or transported, or if the MicroTurbine will not be operated for a period of greater than two weeks. See the following photo showing the isolation switch. Battery Isolation Switch View, Lower Front of MT with Front Door Open 400017 Rev A (July 2007) Page 51 of 61 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Battery Isolation SwitchPDF Image | C65 5xx
PDF Search Title:
C65 5xxOriginal File Name Searched:
400017A_C65_Users_Manual_V5XX.pdfDIY PDF Search: Google It | Yahoo | Bing
