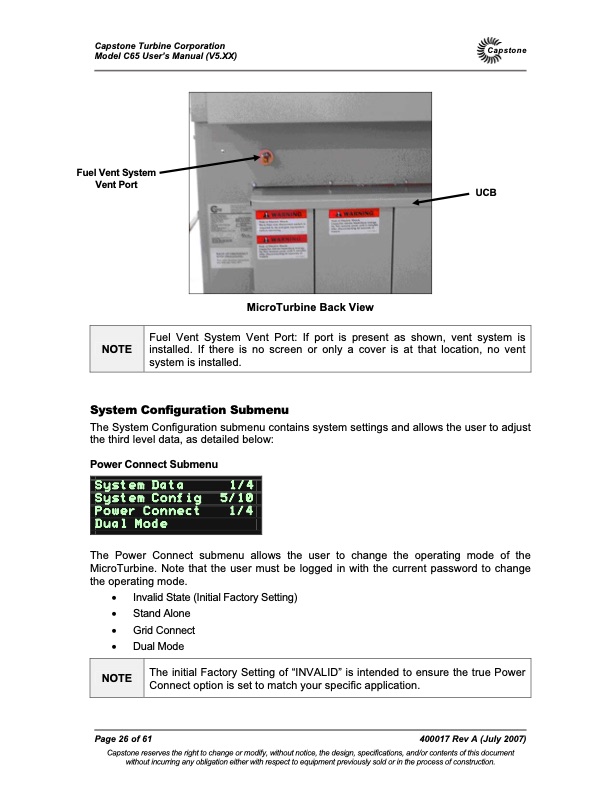

Capstone Turbine Corporation Model C65 User’s Manual (V5.XX) Fuel Vent System Vent Port Capstone UCB MicroTurbine Back View NOTE Fuel Vent System Vent Port: If port is present as shown, vent system is installed. If there is no screen or only a cover is at that location, no vent system is installed. System Configuration Submenu The System Configuration submenu contains system settings and allows the user to adjust the third level data, as detailed below: Power Connect Submenu The Power Connect submenu allows the user to change the operating mode of the MicroTurbine. Note that the user must be logged in with the current password to change the operating mode. • Invalid State (Initial Factory Setting) • Stand Alone • Grid Connect • Dual Mode The initial Factory Setting of “INVALID” is intended to ensure the true Power Connect option is set to match your specific application. Page 26 of 61 400017 Rev A (July 2007) Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. System Data 1/4 System Config 5/10 Power Connect 1/4 Dual Mode NOTEPDF Image | C65 5xx
