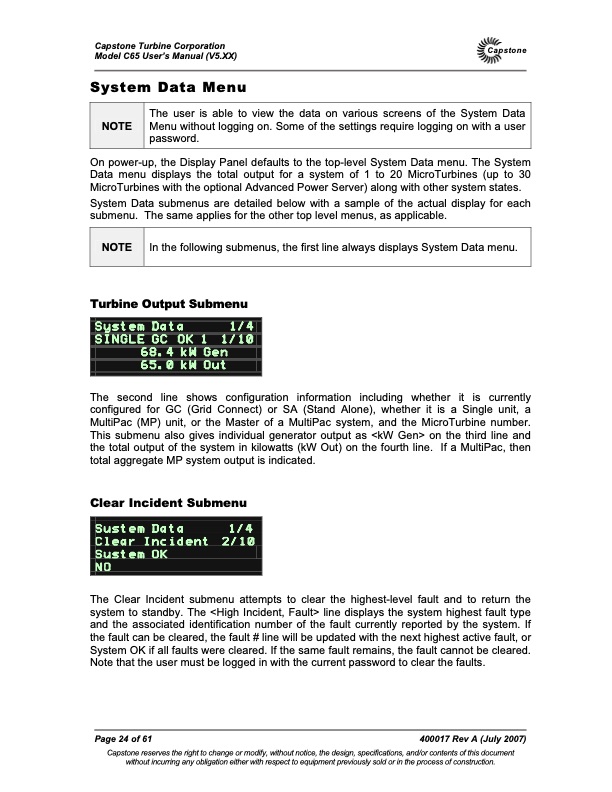

Capstone Turbine Corporation Model C65 User’s Manual (V5.XX) System Data Menu Capstone NOTE The user is able to view the data on various screens of the System Data Menu without logging on. Some of the settings require logging on with a user password. On power-up, the Display Panel defaults to the top-level System Data menu. The System Data menu displays the total output for a system of 1 to 20 MicroTurbines (up to 30 MicroTurbines with the optional Advanced Power Server) along with other system states. System Data submenus are detailed below with a sample of the actual display for each submenu. The same applies for the other top level menus, as applicable. In the following submenus, the first line always displays System Data menu. Turbine Output Submenu The second line shows configuration information including whether it is currently configured for GC (Grid Connect) or SA (Stand Alone), whether it is a Single unit, a MultiPac (MP) unit, or the Master of a MultiPac system, and the MicroTurbine number. This submenu also gives individual generator output as on the third line and the total output of the system in kilowatts (kW Out) on the fourth line. If a MultiPac, then total aggregate MP system output is indicated. Clear Incident Submenu The Clear Incident submenu attempts to clear the highest-level fault and to return the system to standby. The line displays the system highest fault type and the associated identification number of the fault currently reported by the system. If the fault can be cleared, the fault # line will be updated with the next highest active fault, or System OK if all faults were cleared. If the same fault remains, the fault cannot be cleared. Note that the user must be logged in with the current password to clear the faults. Page 24 of 61 400017 Rev A (July 2007) Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. NOTE System Data 1/4 SINGLE GC OK 1 1/10 68.4 kW Gen 65.0 kW Out System Data 1/4 Clear Incident 2/10 System OK NO
