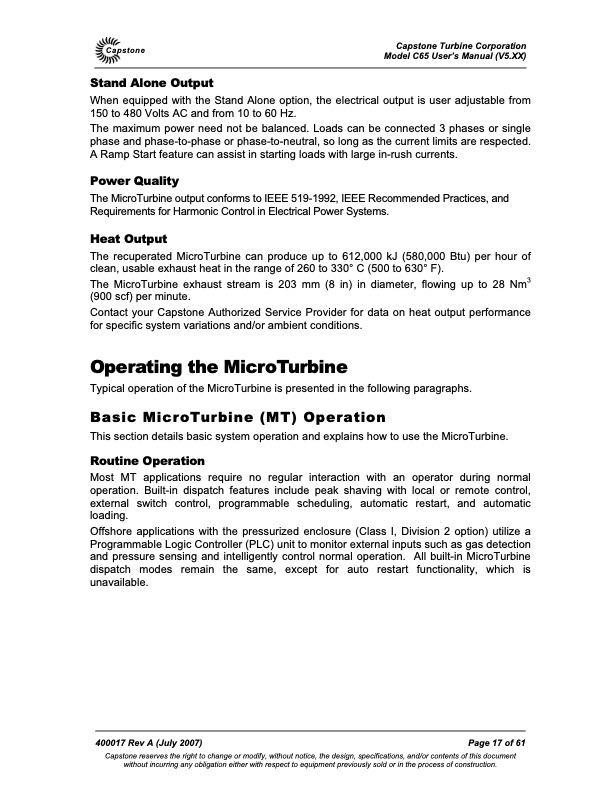

Capstone Stand Alone Output Capstone Turbine Corporation Model C65 User’s Manual (V5.XX) When equipped with the Stand Alone option, the electrical output is user adjustable from 150 to 480 Volts AC and from 10 to 60 Hz. The maximum power need not be balanced. Loads can be connected 3 phases or single phase and phase-to-phase or phase-to-neutral, so long as the current limits are respected. A Ramp Start feature can assist in starting loads with large in-rush currents. Power Quality The MicroTurbine output conforms to IEEE 519-1992, IEEE Recommended Practices, and Requirements for Harmonic Control in Electrical Power Systems. Heat Output The recuperated MicroTurbine can produce up to 612,000 kJ (580,000 Btu) per hour of clean, usable exhaust heat in the range of 260 to 330° C (500 to 630° F). The MicroTurbine exhaust stream is 203 mm (8 in) in diameter, flowing up to 28 Nm3 (900 scf) per minute. Contact your Capstone Authorized Service Provider for data on heat output performance for specific system variations and/or ambient conditions. Operating the MicroTurbine Typical operation of the MicroTurbine is presented in the following paragraphs. Basic MicroTurbine (MT) Operation This section details basic system operation and explains how to use the MicroTurbine. Routine Operation Most MT applications require no regular interaction with an operator during normal operation. Built-in dispatch features include peak shaving with local or remote control, external switch control, programmable scheduling, automatic restart, and automatic loading. Offshore applications with the pressurized enclosure (Class I, Division 2 option) utilize a Programmable Logic Controller (PLC) unit to monitor external inputs such as gas detection and pressure sensing and intelligently control normal operation. All built-in MicroTurbine dispatch modes remain the same, except for auto restart functionality, which is unavailable. 400017 Rev A (July 2007) Page 17 of 61 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | C65 5xx
