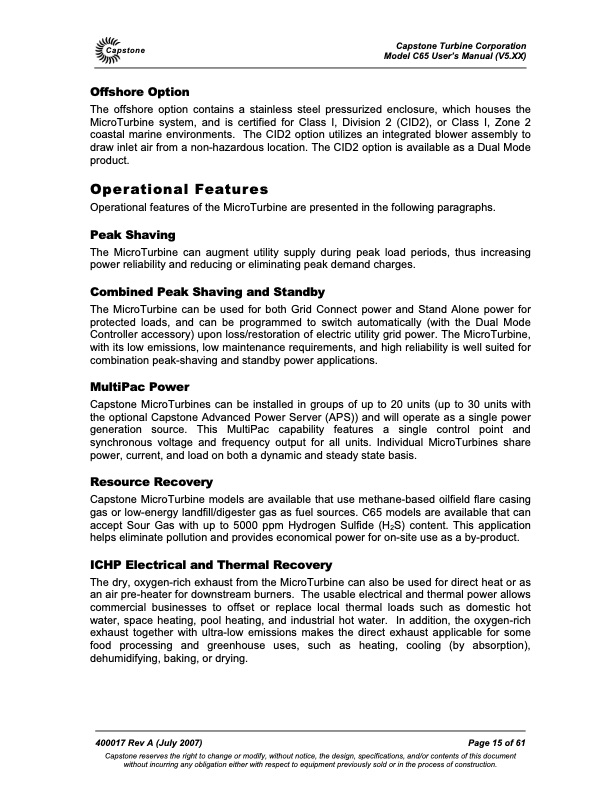

Capstone Offshore Option Capstone Turbine Corporation Model C65 User’s Manual (V5.XX) The offshore option contains a stainless steel pressurized enclosure, which houses the MicroTurbine system, and is certified for Class I, Division 2 (CID2), or Class I, Zone 2 coastal marine environments. The CID2 option utilizes an integrated blower assembly to draw inlet air from a non-hazardous location. The CID2 option is available as a Dual Mode product. Operational Features Operational features of the MicroTurbine are presented in the following paragraphs. Peak Shaving The MicroTurbine can augment utility supply during peak load periods, thus increasing power reliability and reducing or eliminating peak demand charges. Combined Peak Shaving and Standby The MicroTurbine can be used for both Grid Connect power and Stand Alone power for protected loads, and can be programmed to switch automatically (with the Dual Mode Controller accessory) upon loss/restoration of electric utility grid power. The MicroTurbine, with its low emissions, low maintenance requirements, and high reliability is well suited for combination peak-shaving and standby power applications. MultiPac Power Capstone MicroTurbines can be installed in groups of up to 20 units (up to 30 units with the optional Capstone Advanced Power Server (APS)) and will operate as a single power generation source. This MultiPac capability features a single control point and synchronous voltage and frequency output for all units. Individual MicroTurbines share power, current, and load on both a dynamic and steady state basis. Resource Recovery Capstone MicroTurbine models are available that use methane-based oilfield flare casing gas or low-energy landfill/digester gas as fuel sources. C65 models are available that can accept Sour Gas with up to 5000 ppm Hydrogen Sulfide (H2S) content. This application helps eliminate pollution and provides economical power for on-site use as a by-product. ICHP Electrical and Thermal Recovery The dry, oxygen-rich exhaust from the MicroTurbine can also be used for direct heat or as an air pre-heater for downstream burners. The usable electrical and thermal power allows commercial businesses to offset or replace local thermal loads such as domestic hot water, space heating, pool heating, and industrial hot water. In addition, the oxygen-rich exhaust together with ultra-low emissions makes the direct exhaust applicable for some food processing and greenhouse uses, such as heating, cooling (by absorption), dehumidifying, baking, or drying. 400017 Rev A (July 2007) Page 15 of 61 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | C65 5xx
