Text from PDF Page: 016

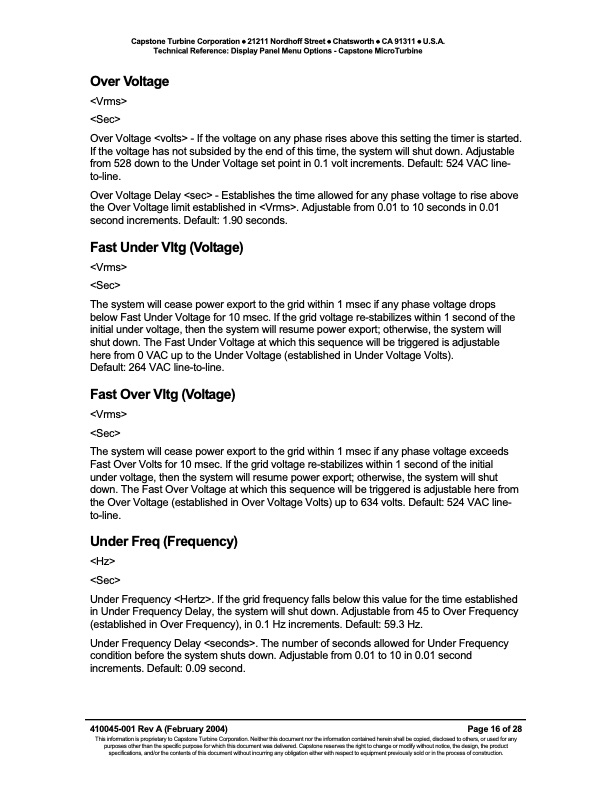

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • U.S.A. Technical Reference: Display Panel Menu Options - Capstone MicroTurbine Over Voltage Over Voltage - If the voltage on any phase rises above this setting the timer is started. If the voltage has not subsided by the end of this time, the system will shut down. Adjustable from 528 down to the Under Voltage set point in 0.1 volt increments. Default: 524 VAC line- to-line. Over Voltage Delay - Establishes the time allowed for any phase voltage to rise above the Over Voltage limit established in . Adjustable from 0.01 to 10 seconds in 0.01 second increments. Default: 1.90 seconds. Fast Under Vltg (Voltage) The system will cease power export to the grid within 1 msec if any phase voltage drops below Fast Under Voltage for 10 msec. If the grid voltage re-stabilizes within 1 second of the initial under voltage, then the system will resume power export; otherwise, the system will shut down. The Fast Under Voltage at which this sequence will be triggered is adjustable here from 0 VAC up to the Under Voltage (established in Under Voltage Volts). Default: 264 VAC line-to-line. Fast Over Vltg (Voltage) The system will cease power export to the grid within 1 msec if any phase voltage exceeds Fast Over Volts for 10 msec. If the grid voltage re-stabilizes within 1 second of the initial under voltage, then the system will resume power export; otherwise, the system will shut down. The Fast Over Voltage at which this sequence will be triggered is adjustable here from the Over Voltage (established in Over Voltage Volts) up to 634 volts. Default: 524 VAC line- to-line. Under Freq (Frequency) Under Frequency . If the grid frequency falls below this value for the time established in Under Frequency Delay, the system will shut down. Adjustable from 45 to Over Frequency (established in Over Frequency), in 0.1 Hz increments. Default: 59.3 Hz. Under Frequency Delay . The number of seconds allowed for Under Frequency condition before the system shuts down. Adjustable from 0.01 to 10 in 0.01 second increments. Default: 0.09 second. 410045-001 Rev A (February 2004) Page 16 of 28 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.
