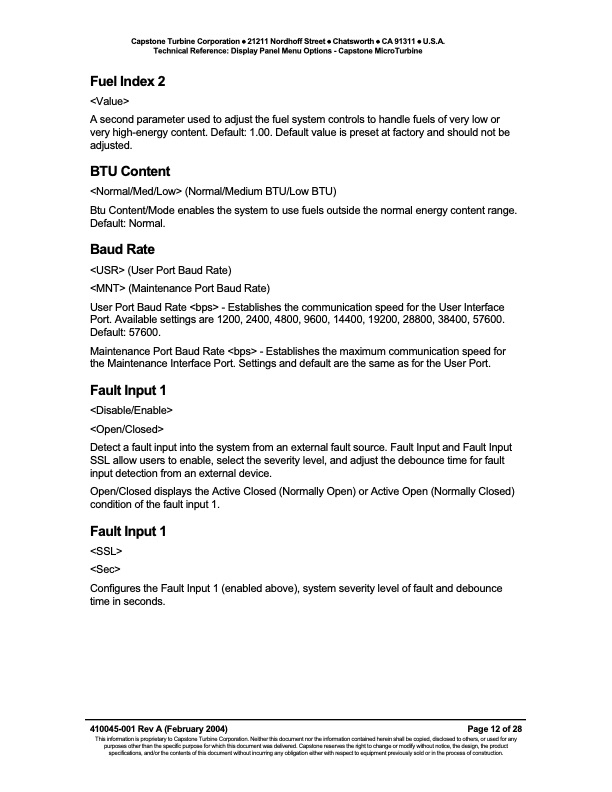

Text from PDF Page: 012

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • U.S.A. Technical Reference: Display Panel Menu Options - Capstone MicroTurbine Fuel Index 2 A second parameter used to adjust the fuel system controls to handle fuels of very low or very high-energy content. Default: 1.00. Default value is preset at factory and should not be adjusted. BTU Content (Normal/Medium BTU/Low BTU) Btu Content/Mode enables the system to use fuels outside the normal energy content range. Default: Normal. Baud Rate (User Port Baud Rate) (Maintenance Port Baud Rate) User Port Baud Rate - Establishes the communication speed for the User Interface Port. Available settings are 1200, 2400, 4800, 9600, 14400, 19200, 28800, 38400, 57600. Default: 57600. Maintenance Port Baud Rate - Establishes the maximum communication speed for the Maintenance Interface Port. Settings and default are the same as for the User Port. Fault Input 1 Detect a fault input into the system from an external fault source. Fault Input and Fault Input SSL allow users to enable, select the severity level, and adjust the debounce time for fault input detection from an external device. Open/Closed displays the Active Closed (Normally Open) or Active Open (Normally Closed) condition of the fault input 1. Fault Input 1 Configures the Fault Input 1 (enabled above), system severity level of fault and debounce time in seconds. 410045-001 Rev A (February 2004) Page 12 of 28 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.

PDF Image | Technical Reference Display Panel Menu Options Capstone MicroTurbine

technical-reference-display-panel-menu-options-capstone-micr-012
