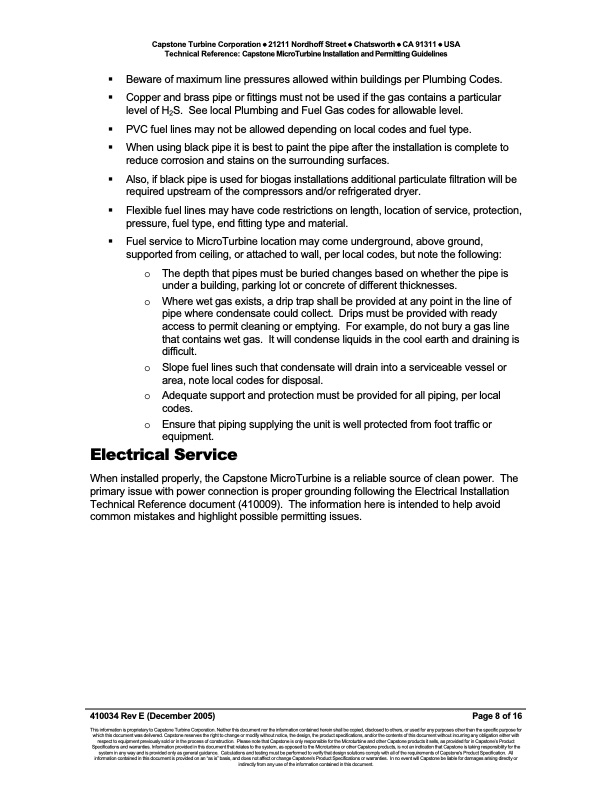

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone MicroTurbine Installation and Permitting Guidelines Beware of maximum line pressures allowed within buildings per Plumbing Codes. Copper and brass pipe or fittings must not be used if the gas contains a particular level of H2S. See local Plumbing and Fuel Gas codes for allowable level. PVC fuel lines may not be allowed depending on local codes and fuel type. When using black pipe it is best to paint the pipe after the installation is complete to reduce corrosion and stains on the surrounding surfaces. Also,ifblackpipeisusedforbiogasinstallationsadditionalparticulatefiltrationwillbe required upstream of the compressors and/or refrigerated dryer. Flexible fuel lines may have code restrictions on length, location of service, protection, pressure, fuel type, end fitting type and material. FuelservicetoMicroTurbinelocationmaycomeunderground,aboveground, supported from ceiling, or attached to wall, per local codes, but note the following: o Thedepththatpipesmustbeburiedchangesbasedonwhetherthepipeis under a building, parking lot or concrete of different thicknesses. o Wherewetgasexists,adriptrapshallbeprovidedatanypointinthelineof pipe where condensate could collect. Drips must be provided with ready access to permit cleaning or emptying. For example, do not bury a gas line that contains wet gas. It will condense liquids in the cool earth and draining is difficult. o Slopefuellinessuchthatcondensatewilldrainintoaserviceablevesselor area, note local codes for disposal. o Adequatesupportandprotectionmustbeprovidedforallpiping,perlocal codes. o Ensurethatpipingsupplyingtheunitiswellprotectedfromfoottrafficor equipment. Electrical Service When installed properly, the Capstone MicroTurbine is a reliable source of clean power. The primary issue with power connection is proper grounding following the Electrical Installation Technical Reference document (410009). The information here is intended to help avoid common mistakes and highlight possible permitting issues. 410034 Rev E (December 2005) Page 8 of 16 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respecttoequipmentpreviouslysoldorintheprocessofconstruction. PleasenotethatCapstoneisonlyresponsiblefortheMicroturbineandotherCapstoneproductsitsells,asprovidedforinCapstone’sProduct Specifications and warranties. Information provided in this document that relates to the system, as opposed to the Microturbine or other Capstone products, is not an indication that Capstone is taking responsibility for the systeminanywayandisprovidedonlyasgeneralguidance. CalculationsandtestingmustbeperformedtoverifythatdesignsolutionscomplywithalloftherequirementsofCapstone'sProductSpecification. All informationcontainedinthisdocumentisprovidedonan“asis”basis,anddoesnotaffectorchangeCapstone'sProductSpecificationsorwarranties. InnoeventwillCapstonebeliablefordamagesarisingdirectlyor indirectly from any use of the information contained in this document.PDF Image | Technical Reference Capstone MicroTurbine Installation and Permitting Guidelines
