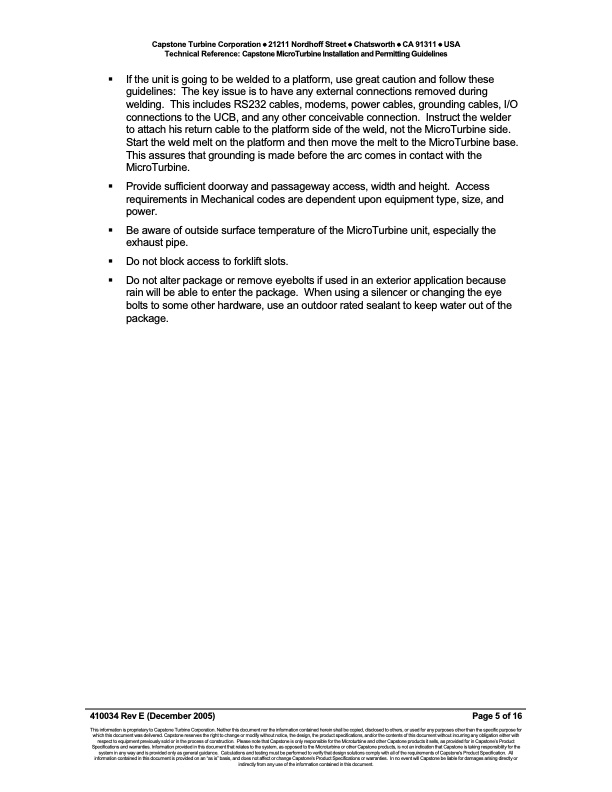

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone MicroTurbine Installation and Permitting Guidelines Iftheunitisgoingtobeweldedtoaplatform,usegreatcautionandfollowthese guidelines: The key issue is to have any external connections removed during welding. This includes RS232 cables, modems, power cables, grounding cables, I/O connections to the UCB, and any other conceivable connection. Instruct the welder to attach his return cable to the platform side of the weld, not the MicroTurbine side. Start the weld melt on the platform and then move the melt to the MicroTurbine base. This assures that grounding is made before the arc comes in contact with the MicroTurbine. Provide sufficient doorway and passageway access, width and height. Access requirements in Mechanical codes are dependent upon equipment type, size, and power. Be aware of outside surface temperature of the MicroTurbine unit, especially the exhaust pipe. Donotblockaccesstoforkliftslots. Donotalterpackageorremoveeyeboltsifusedinanexteriorapplicationbecause rain will be able to enter the package. When using a silencer or changing the eye bolts to some other hardware, use an outdoor rated sealant to keep water out of the package. 410034 Rev E (December 2005) Page 5 of 16 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respecttoequipmentpreviouslysoldorintheprocessofconstruction. PleasenotethatCapstoneisonlyresponsiblefortheMicroturbineandotherCapstoneproductsitsells,asprovidedforinCapstone’sProduct Specifications and warranties. Information provided in this document that relates to the system, as opposed to the Microturbine or other Capstone products, is not an indication that Capstone is taking responsibility for the systeminanywayandisprovidedonlyasgeneralguidance. CalculationsandtestingmustbeperformedtoverifythatdesignsolutionscomplywithalloftherequirementsofCapstone'sProductSpecification. All informationcontainedinthisdocumentisprovidedonan“asis”basis,anddoesnotaffectorchangeCapstone'sProductSpecificationsorwarranties. InnoeventwillCapstonebeliablefordamagesarisingdirectlyor indirectly from any use of the information contained in this document.PDF Image | Technical Reference Capstone MicroTurbine Installation and Permitting Guidelines
