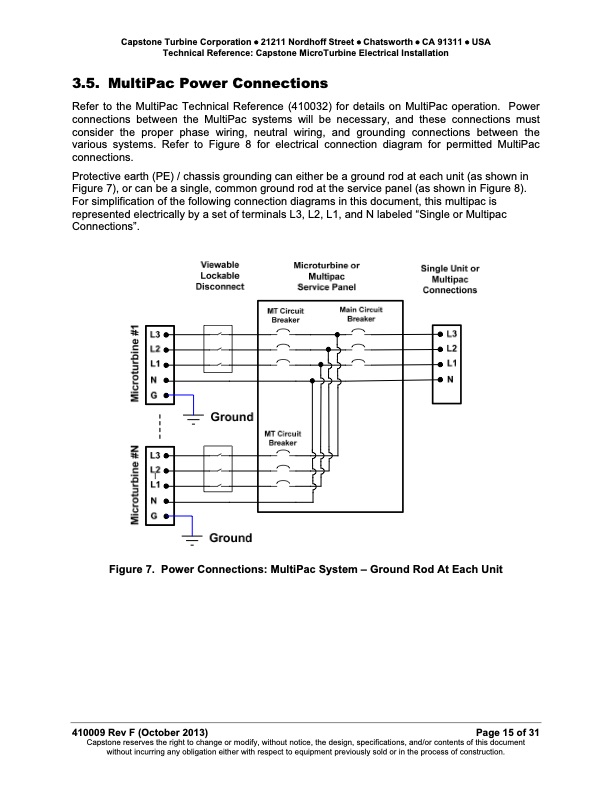

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Technical Reference: Capstone MicroTurbine Electrical Installation 3.5. MultiPac Power Connections Refer to the MultiPac Technical Reference (410032) for details on MultiPac operation. Power connections between the MultiPac systems will be necessary, and these connections must consider the proper phase wiring, neutral wiring, and grounding connections between the various systems. Refer to Figure 8 for electrical connection diagram for permitted MultiPac connections. Protective earth (PE) / chassis grounding can either be a ground rod at each unit (as shown in Figure 7), or can be a single, common ground rod at the service panel (as shown in Figure 8). For simplification of the following connection diagrams in this document, this multipac is represented electrically by a set of terminals L3, L2, L1, and N labeled “Single or Multipac Connections”. Figure 7. Power Connections: MultiPac System – Ground Rod At Each Unit 410009 Rev F (October 2013) Page 15 of 31 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone MicroTurbine Electrical Installation
