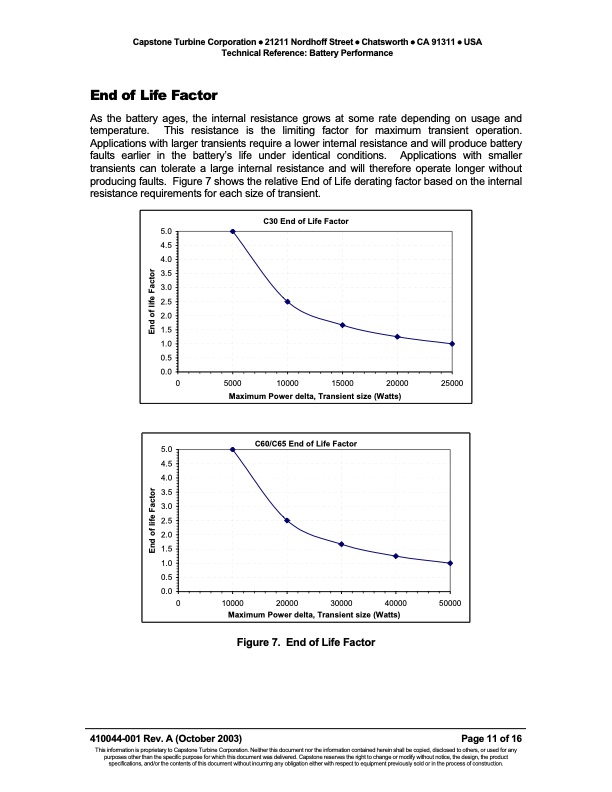

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Battery Performance End of Life Factor As the battery ages, the internal resistance grows at some rate depending on usage and temperature. This resistance is the limiting factor for maximum transient operation. Applications with larger transients require a lower internal resistance and will produce battery faults earlier in the battery’s life under identical conditions. Applications with smaller transients can tolerate a large internal resistance and will therefore operate longer without producing faults. Figure 7 shows the relative End of Life derating factor based on the internal resistance requirements for each size of transient. 5.0 4.5 4.0 3.5 3.0 2.5 2.0 1.5 1.0 0.5 0.0 C30 End of Life Factor 0 5000 10000 15000 20000 Maximum Power delta, Transient size (Watts) 25000 5.0 4.5 4.0 3.5 3.0 2.5 2.0 1.5 1.0 0.5 0.0 C60/C65 End of Life Factor 0 10000 20000 30000 40000 50000 Maximum Power delta, Transient size (Watts) Figure 7. End of Life Factor 410044-001 Rev. A (October 2003) Page 11 of 16 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. End of life Factor End of life FactorPDF Image | Technical Reference Battery Performance
