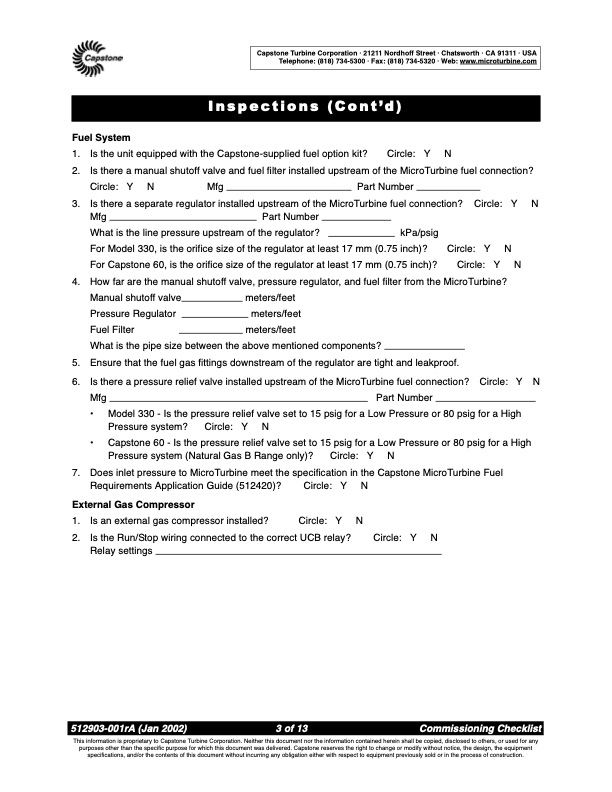

Text from PDF Page: 003
Capstone Turbine Corporation · 21211 Nordhoff Street · Chatsworth · CA 91311 · USA Telephone: (818) 734-5300 · Fax: (818) 734-5320 · Web: www.microturbine.com Fuel System Inspections (Contíd) 1. Is the unit equipped with the Capstone-supplied fuel option kit? Circle: Y N 2. Is there a manual shutoff valve and fuel filter installed upstream of the MicroTurbine fuel connection? Circle: Y N Mfg Part Number 3. Is there a separate regulator installed upstream of the MicroTurbine fuel connection? Circle: Y N Mfg Part Number What is the line pressure upstream of the regulator? kPa/psig For Model 330, is the orifice size of the regulator at least 17 mm (0.75 inch)? Circle: Y N For Capstone 60, is the orifice size of the regulator at least 17 mm (0.75 inch)? Circle: Y N 4. How far are the manual shutoff valve, pressure regulator, and fuel filter from the MicroTurbine? Manual shutoff valve meters/feet Circle: Y meters/feet meters/feet Pressure Regulator Fuel Filter What is the pipe size between the above mentioned components? 5. Ensure that the fuel gas fittings downstream of the regulator are tight and leakproof. 6. Is there a pressure relief valve installed upstream of the MicroTurbine fuel connection? N Mfg • • Part Number Model 330 - Is the pressure relief valve set to 15 psig for a Low Pressure or 80 psig for a High Pressure system? Circle: Y N Capstone 60 - Is the pressure relief valve set to 15 psig for a Low Pressure or 80 psig for a High Pressure system (Natural Gas B Range only)? Circle: Y N 7. Does inlet pressure to MicroTurbine meet the specification in the Capstone MicroTurbine Fuel Requirements Application Guide (512420)? Circle: Y N External Gas Compressor 1. Is an external gas compressor installed? Circle: Y N 2. Is the Run/Stop wiring connected to the correct UCB relay? Relay settings Circle: Y N 512903-001rA (Jan 2002) 3 of 13 Commissioning Checklist This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Commissioning Checklist - MicroTurbines
