Text from PDF Page: 025

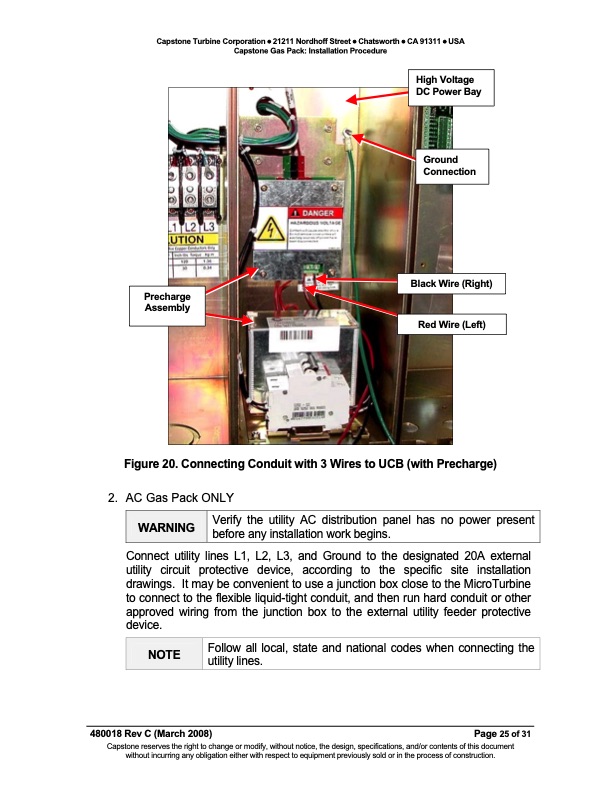

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Capstone Gas Pack: Installation Procedure Figure 20. Connecting Conduit with 3 Wires to UCB (with Precharge) 2. ACGasPackONLY High Voltage DC Power Bay Ground Connection Precharge Assembly Black Wire (Right) Red Wire (Left) WARNING Verify the utility AC distribution panel has no power present before any installation work begins. Connect utility lines L1, L2, L3, and Ground to the designated 20A external utility circuit protective device, according to the specific site installation drawings. It may be convenient to use a junction box close to the MicroTurbine to connect to the flexible liquid-tight conduit, and then run hard conduit or other approved wiring from the junction box to the external utility feeder protective device. NOTE Follow all local, state and national codes when connecting the utility lines. 480018 Rev C (March 2008) Page 25 of 31 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | CAPSTONE GAS PACK INSTALLATION PROCEDURE
