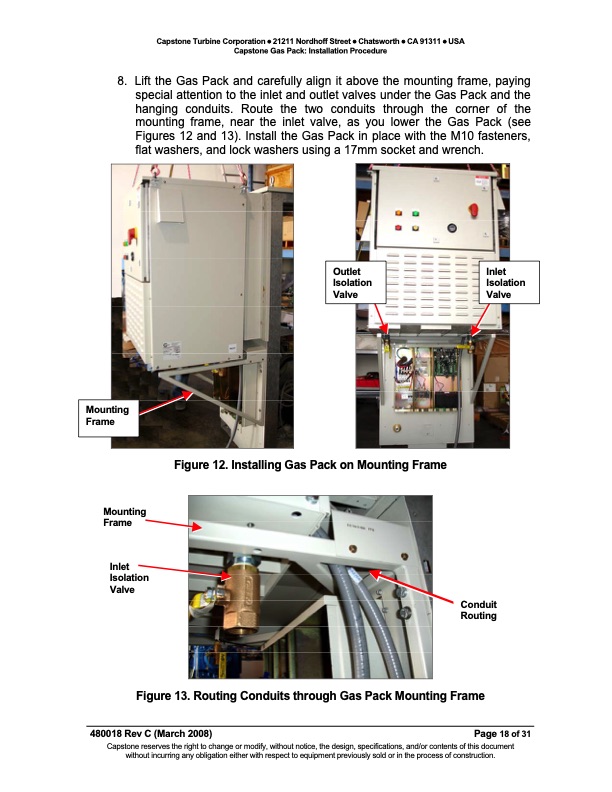

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Capstone Gas Pack: Installation Procedure 8. Lift the Gas Pack and carefully align it above the mounting frame, paying special attention to the inlet and outlet valves under the Gas Pack and the hanging conduits. Route the two conduits through the corner of the mounting frame, near the inlet valve, as you lower the Gas Pack (see Figures 12 and 13). Install the Gas Pack in place with the M10 fasteners, flat washers, and lock washers using a 17mm socket and wrench. Figure 12. Installing Gas Pack on Mounting Frame Mounting Frame Figure 13. Routing Conduits through Gas Pack Mounting Frame 480018 Rev C (March 2008) Page 18 of 31 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Outlet Isolation Valve Inlet Isolation Valve Mounting Frame Inlet Isolation Valve Conduit RoutingPDF Image | CAPSTONE GAS PACK INSTALLATION PROCEDURE
