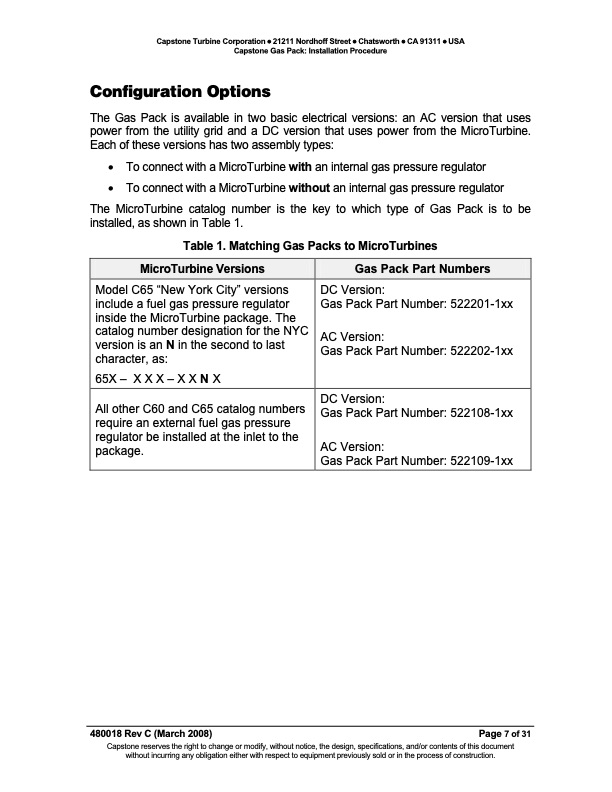

Text from PDF Page: 007
Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Capstone Gas Pack: Installation Procedure Configuration Options The Gas Pack is available in two basic electrical versions: an AC version that uses power from the utility grid and a DC version that uses power from the MicroTurbine. Each of these versions has two assembly types: • To connect with a MicroTurbine with an internal gas pressure regulator • To connect with a MicroTurbine without an internal gas pressure regulator The MicroTurbine catalog number is the key to which type of Gas Pack is to be installed, as shown in Table 1. Table 1. Matching Gas Packs to MicroTurbines MicroTurbine Versions Gas Pack Part Numbers Model C65 “New York City” versions include a fuel gas pressure regulator inside the MicroTurbine package. The catalog number designation for the NYC version is an N in the second to last character, as: 65X– XXX–XXNX DC Version: Gas Pack Part Number: 522201-1xx AC Version: Gas Pack Part Number: 522202-1xx All other C60 and C65 catalog numbers require an external fuel gas pressure regulator be installed at the inlet to the package. DC Version: Gas Pack Part Number: 522108-1xx AC Version: Gas Pack Part Number: 522109-1xx 480018 Rev C (March 2008) Page 7 of 31 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | CAPSTONE GAS PACK INSTALLATION PROCEDURE
