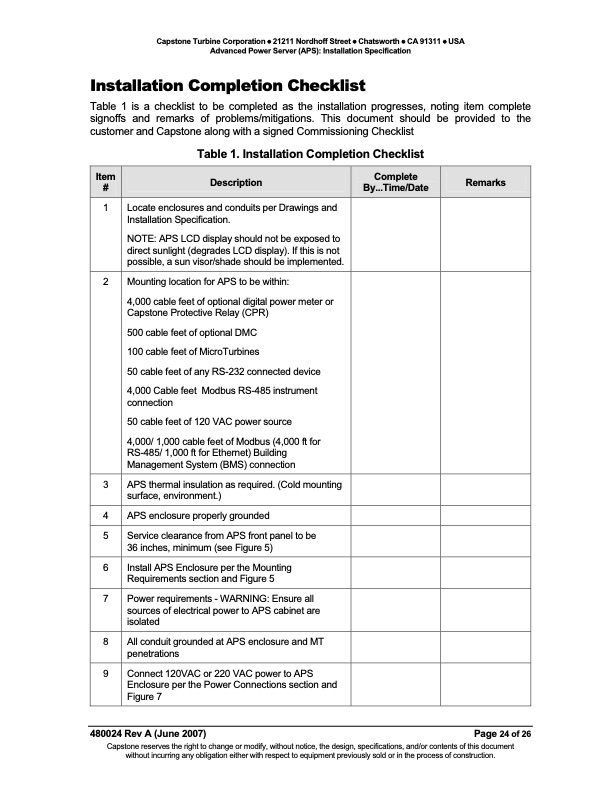

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Advanced Power Server (APS): Installation Specification Installation Completion Checklist Table 1 is a checklist to be completed as the installation progresses, noting item complete signoffs and remarks of problems/mitigations. This document should be provided to the customer and Capstone along with a signed Commissioning Checklist Table 1. Installation Completion Checklist Item # Description Complete By...Time/Date Remarks 1 Locate enclosures and conduits per Drawings and Installation Specification. NOTE: APS LCD display should not be exposed to direct sunlight (degrades LCD display). If this is not possible, a sun visor/shade should be implemented. 2 Mounting location for APS to be within: 4,000 cable feet of optional digital power meter or Capstone Protective Relay (CPR) 500 cable feet of optional DMC 100 cable feet of MicroTurbines 50 cable feet of any RS-232 connected device 4,000 Cable feet Modbus RS-485 instrument connection 50 cable feet of 120 VAC power source 4,000/ 1,000 cable feet of Modbus (4,000 ft for RS-485/ 1,000 ft for Ethernet) Building Management System (BMS) connection 3 APS thermal insulation as required. (Cold mounting surface, environment.) 4 APS enclosure properly grounded 5 Service clearance from APS front panel to be 36 inches, minimum (see Figure 5) 6 Install APS Enclosure per the Mounting Requirements section and Figure 5 8 All conduit grounded at APS enclosure and MT penetrations 480024 Rev A (June 2007) Page 24 of 26 7 Power requirements - WARNING: Ensure all sources of electrical power to APS cabinet are isolated 9 Connect 120VAC or 220 VAC power to APS Enclosure per the Power Connections section and Figure 7 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | ADVANCED POWER SERVER (APS) INSTALLATION SPECIFICATION
