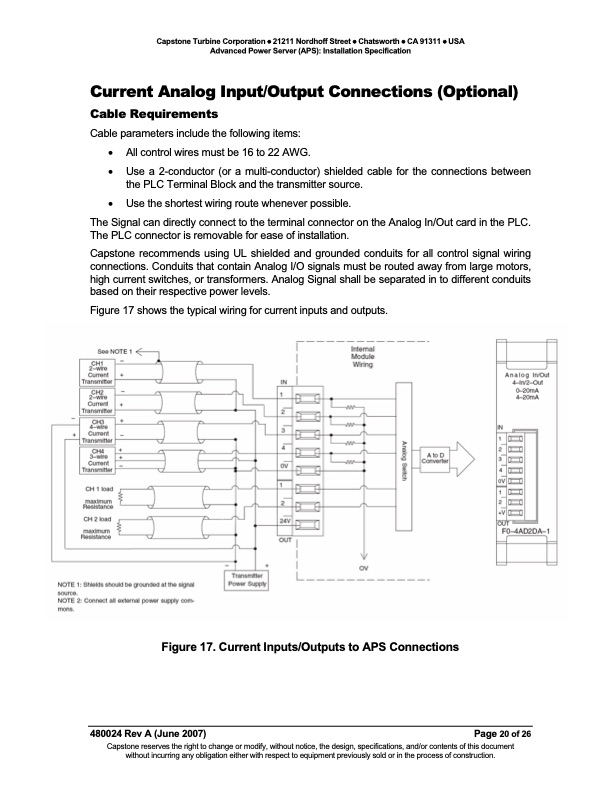

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Advanced Power Server (APS): Installation Specification Current Analog Input/Output Connections (Optional) Cable Requirements Cable parameters include the following items: • All control wires must be 16 to 22 AWG. • Use a 2-conductor (or a multi-conductor) shielded cable for the connections between the PLC Terminal Block and the transmitter source. • Use the shortest wiring route whenever possible. The Signal can directly connect to the terminal connector on the Analog In/Out card in the PLC. The PLC connector is removable for ease of installation. Capstone recommends using UL shielded and grounded conduits for all control signal wiring connections. Conduits that contain Analog I/O signals must be routed away from large motors, high current switches, or transformers. Analog Signal shall be separated in to different conduits based on their respective power levels. Figure 17 shows the typical wiring for current inputs and outputs. Figure 17. Current Inputs/Outputs to APS Connections 480024 Rev A (June 2007) Page 20 of 26 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | ADVANCED POWER SERVER (APS) INSTALLATION SPECIFICATION
