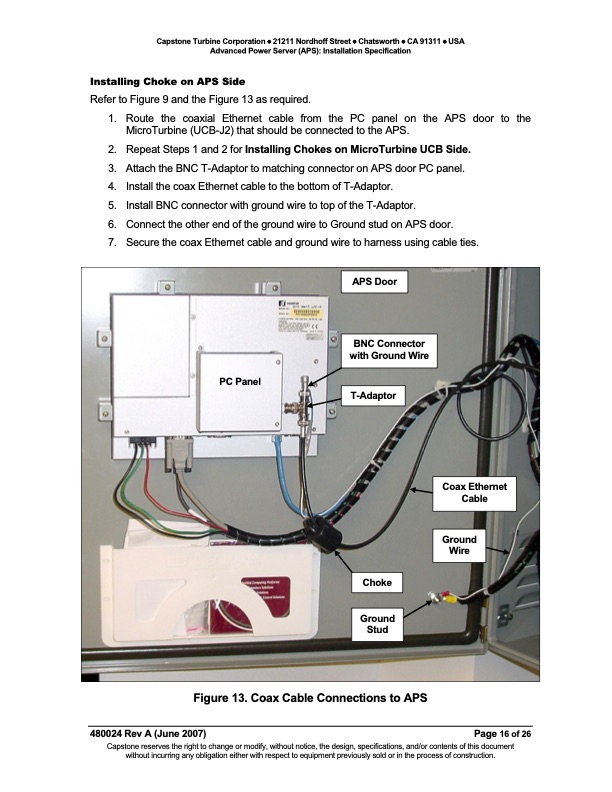

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Advanced Power Server (APS): Installation Specification Installing Choke on APS Side Refer to Figure 9 and the Figure 13 as required. 1. Route the coaxial Ethernet cable from the PC panel on the APS door to the MicroTurbine (UCB-J2) that should be connected to the APS. 2. Repeat Steps 1 and 2 for Installing Chokes on MicroTurbine UCB Side. 3. Attach the BNC T-Adaptor to matching connector on APS door PC panel. 4. Install the coax Ethernet cable to the bottom of T-Adaptor. 5. Install BNC connector with ground wire to top of the T-Adaptor. 6. Connect the other end of the ground wire to Ground stud on APS door. 7. Secure the coax Ethernet cable and ground wire to harness using cable ties. BNC Connector with Ground Wire PC Panel T-Adaptor Choke Coax Ethernet Cable Ground Wire Ground Stud APS Door Figure 13. Coax Cable Connections to APS 480024 Rev A (June 2007) Page 16 of 26 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | ADVANCED POWER SERVER (APS) INSTALLATION SPECIFICATION
