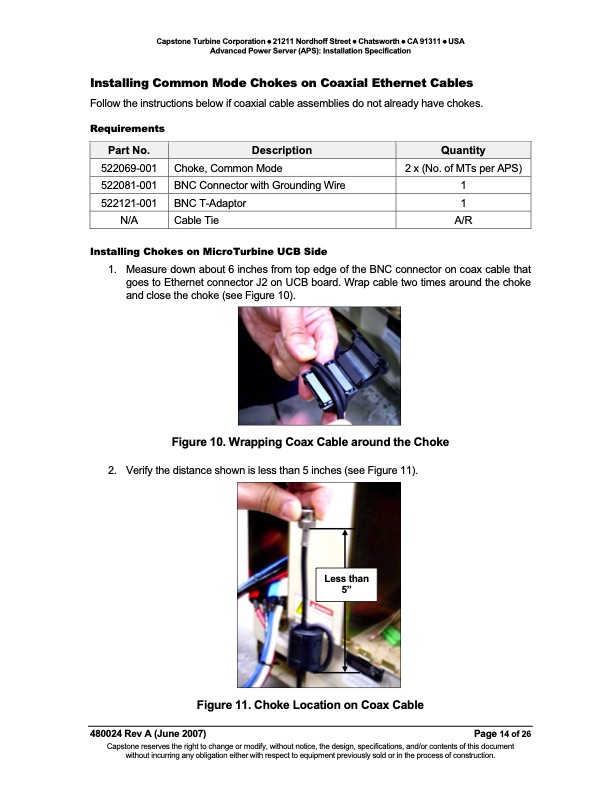

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Advanced Power Server (APS): Installation Specification Installing Common Mode Chokes on Coaxial Ethernet Cables Follow the instructions below if coaxial cable assemblies do not already have chokes. Requirements 522069-001 522081-001 522121-001 N/A Choke, Common Mode BNC Connector with Grounding Wire BNC T-Adaptor Cable Tie 2 x (No. of MTs per APS) 1 1 A/R Part No. Description Quantity Installing Chokes on MicroTurbine UCB Side 1. Measure down about 6 inches from top edge of the BNC connector on coax cable that goes to Ethernet connector J2 on UCB board. Wrap cable two times around the choke and close the choke (see Figure 10). Figure 10. Wrapping Coax Cable around the Choke 2. Verify the distance shown is less than 5 inches (see Figure 11). Figure 11. Choke Location on Coax Cable 480024 Rev A (June 2007) Page 14 of 26 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Less than 5”PDF Image | ADVANCED POWER SERVER (APS) INSTALLATION SPECIFICATION
