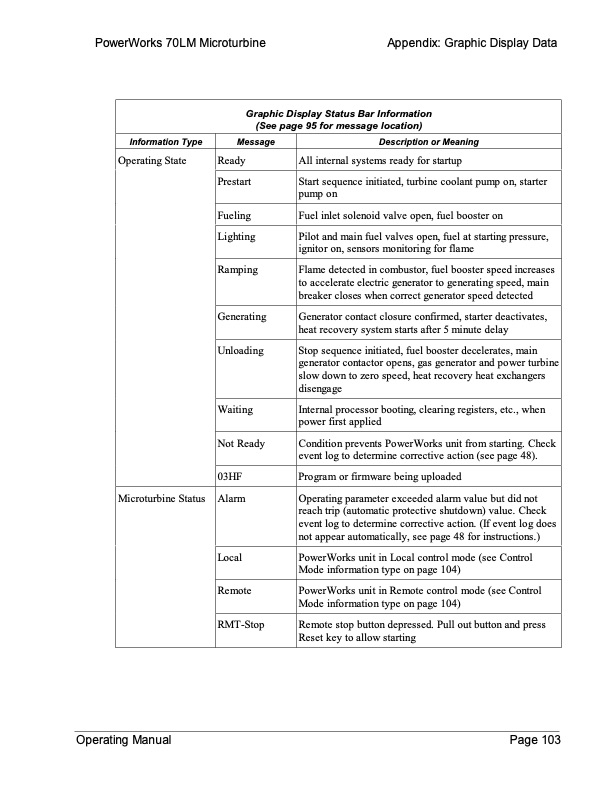

PowerWorks 70LM Microturbine Appendix: Graphic Display Data Graphic Display Status Bar Information (See page 95 for message location) Information Type Operating State Message Ready Prestart Fueling Lighting Generating Waiting Not Ready 03HF Local Remote RMT-Stop Description or Meaning All internal systems ready for startup Start sequence initiated, turbine coolant pump on, starter pump on Fuel inlet solenoid valve open, fuel booster on Pilot and main fuel valves open, fuel at starting pressure, ignitor on, sensors monitoring for flame Generator contact closure confirmed, starter deactivates, heat recovery system starts after 5 minute delay Internal processor booting, clearing registers, etc., when power first applied Condition prevents PowerWorks unit from starting. Check event log to determine corrective action (see page 48). Program or firmware being uploaded PowerWorks unit in Local control mode (see Control Mode information type on page 104) PowerWorks unit in Remote control mode (see Control Mode information type on page 104) Remote stop button depressed. Pull out button and press Reset key to allow starting Ramping Flame detected in combustor, fuel booster speed increases to accelerate electric generator to generating speed, main breaker closes when correct generator speed detected Unloading Stop sequence initiated, fuel booster decelerates, main generator contactor opens, gas generator and power turbine slow down to zero speed, heat recovery heat exchangers d i s e nga ge Alarm Operating parameter exceeded alarm value but did not reach trip (automatic protective shutdown) value. Check event log to determine corrective action. (If event log does not appear automatically, see page 48 for instructions.) Microturbine Status Operating Manual Page 103PDF Image | 70LM Microturbine Operating Manual
