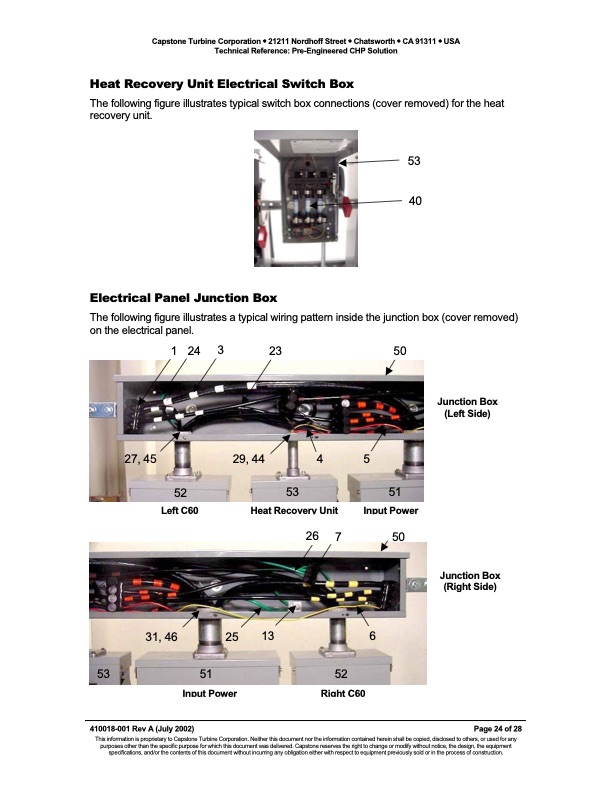

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Pre-Engineered CHP Solution Heat Recovery Unit Electrical Switch Box The following figure illustrates typical switch box connections (cover removed) for the heat recovery unit. 53 40 Electrical Panel Junction Box The following figure illustrates a typical wiring pattern inside the junction box (cover removed) on the electrical panel. 124323 50 29, 44 4 5 52 53 51 Left C60 Heat Recovery Unit Input Power 267 50 Junction Box (Left Side) 27, 45 31,462513 6 53 51 52 Input Power Right C60 410018-001 Rev A (July 2002) Page 24 of 28 Junction Box (Right Side) This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Pre-Engineered CHP Solution
