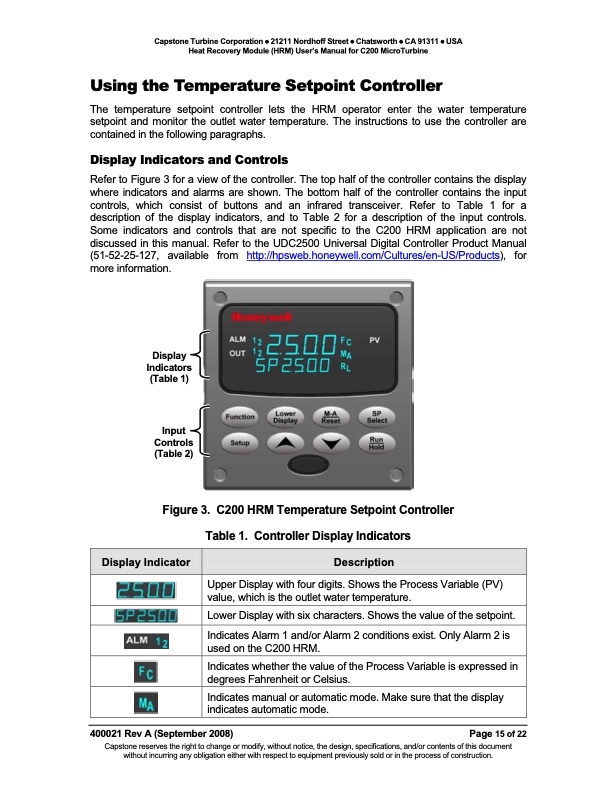

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Heat Recovery Module (HRM) User’s Manual for C200 MicroTurbine Using the Temperature Setpoint Controller The temperature setpoint controller lets the HRM operator enter the water temperature setpoint and monitor the outlet water temperature. The instructions to use the controller are contained in the following paragraphs. Display Indicators and Controls Refer to Figure 3 for a view of the controller. The top half of the controller contains the display where indicators and alarms are shown. The bottom half of the controller contains the input controls, which consist of buttons and an infrared transceiver. Refer to Table 1 for a description of the display indicators, and to Table 2 for a description of the input controls. Some indicators and controls that are not specific to the C200 HRM application are not discussed in this manual. Refer to the UDC2500 Universal Digital Controller Product Manual (51-52-25-127, available from http://hpsweb.honeywell.com/Cultures/en-US/Products), for more information. Display Indicators (Table 1) Input Controls (Table 2) Figure 3. C200 HRM Temperature Setpoint Controller Table 1. Controller Display Indicators Upper Display with four digits. Shows the Process Variable (PV) value, which is the outlet water temperature. Lower Display with six characters. Shows the value of the setpoint. Indicates Alarm 1 and/or Alarm 2 conditions exist. Only Alarm 2 is used on the C200 HRM. Indicates whether the value of the Process Variable is expressed in degrees Fahrenheit or Celsius. Indicates manual or automatic mode. Make sure that the display indicates automatic mode. 400021 Rev A (September 2008) Page 15 of 22 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Display Indicator DescriptionPDF Image | HEAT RECOVERY MODULE (HRM) USER’S MANUAL FOR C200 MICROTURBINE
