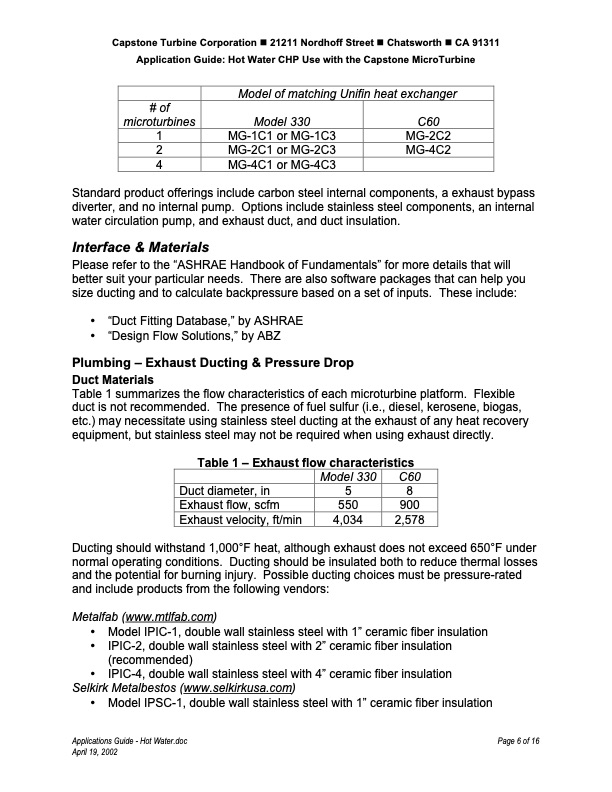

Capstone Turbine Corporationn21211 Nordhoff StreetnChatsworthnCA 91311 Application Guide: Hot Water CHP Use with the Capstone MicroTurbine Model of matching Unifin heat exchanger # of microturbines Model 330 C60 MG-2C2 MG-4C2 1 MG-1C1 or MG-1C3 2 MG-2C1 or MG-2C3 4 MG-4C1 or MG-4C3 Standard product offerings include carbon steel internal components, a exhaust bypass diverter, and no internal pump. Options include stainless steel components, an internal water circulation pump, and exhaust duct, and duct insulation. Interface & Materials Please refer to the “ASHRAE Handbook of Fundamentals” for more details that will better suit your particular needs. There are also software packages that can help you size ducting and to calculate backpressure based on a set of inputs. These include: • “Duct Fitting Database,” by ASHRAE • “Design Flow Solutions,” by ABZ Plumbing – Exhaust Ducting & Pressure Drop Duct Materials Table 1 summarizes the flow characteristics of each microturbine platform. Flexible duct is not recommended. The presence of fuel sulfur (i.e., diesel, kerosene, biogas, etc.) may necessitate using stainless steel ducting at the exhaust of any heat recovery equipment, but stainless steel may not be required when using exhaust directly. Table 1 – Exhaust flow characteristics Duct diameter, in Exhaust flow, scfm Exhaust velocity, ft/min Model 330 C60 5 8 550 900 4,034 2,578 Ducting should withstand 1,000°F heat, although exhaust does not exceed 650°F under normal operating conditions. Ducting should be insulated both to reduce thermal losses and the potential for burning injury. Possible ducting choices must be pressure-rated and include products from the following vendors: Metalfab (www.mtlfab.com) • Model IPIC-1, double wall stainless steel with 1” ceramic fiber insulation • IPIC-2, double wall stainless steel with 2” ceramic fiber insulation (recommended) • IPIC-4, double wall stainless steel with 4” ceramic fiber insulation Selkirk Metalbestos (www.selkirkusa.com) • Model IPSC-1, double wall stainless steel with 1” ceramic fiber insulation Applications Guide - Hot Water.doc April 19, 2002 Page 6 of 16PDF Image | Capstone App Guide CHP
