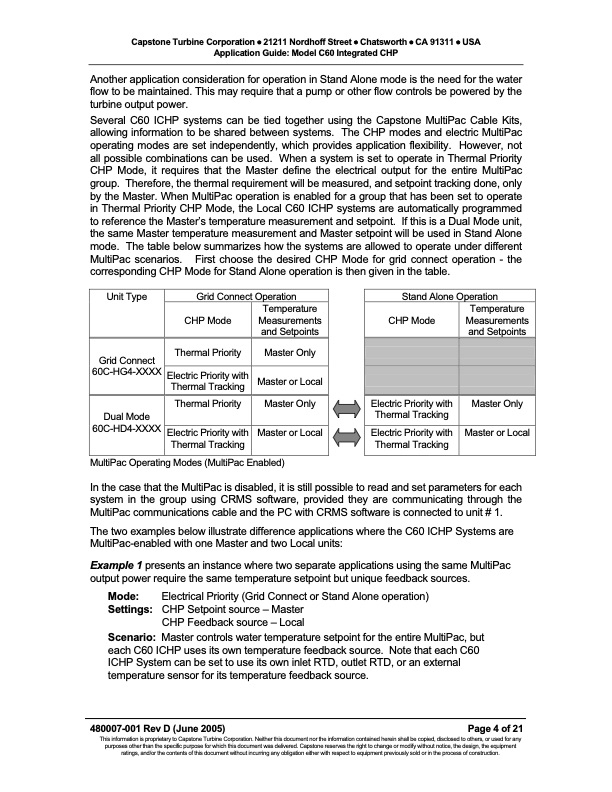

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Application Guide: Model C60 Integrated CHP Another application consideration for operation in Stand Alone mode is the need for the water flow to be maintained. This may require that a pump or other flow controls be powered by the turbine output power. Several C60 ICHP systems can be tied together using the Capstone MultiPac Cable Kits, allowing information to be shared between systems. The CHP modes and electric MultiPac operating modes are set independently, which provides application flexibility. However, not all possible combinations can be used. When a system is set to operate in Thermal Priority CHP Mode, it requires that the Master define the electrical output for the entire MultiPac group. Therefore, the thermal requirement will be measured, and setpoint tracking done, only by the Master. When MultiPac operation is enabled for a group that has been set to operate in Thermal Priority CHP Mode, the Local C60 ICHP systems are automatically programmed to reference the Master’s temperature measurement and setpoint. If this is a Dual Mode unit, the same Master temperature measurement and Master setpoint will be used in Stand Alone mode. The table below summarizes how the systems are allowed to operate under different MultiPac scenarios. First choose the desired CHP Mode for grid connect operation - the corresponding CHP Mode for Stand Alone operation is then given in the table. Unit Type Grid Connect Operation Temperature Stand Alone Operation Temperature Grid Connect CHP Mode Thermal Priority Measurements and Setpoints Master Only Master or Local Master Only CHP Mode Electric Priority with Thermal Tracking Electric Priority with Thermal Tracking Measurements and Setpoints Master Only Master or Local 60C-HG4-XXXX Electric Priority with Thermal Tracking Thermal Priority Dual Mode 60C-HD4-XXXX Electric Priority with Thermal Tracking Master or Local MultiPac Operating Modes (MultiPac Enabled) In the case that the MultiPac is disabled, it is still possible to read and set parameters for each system in the group using CRMS software, provided they are communicating through the MultiPac communications cable and the PC with CRMS software is connected to unit # 1. The two examples below illustrate difference applications where the C60 ICHP Systems are MultiPac-enabled with one Master and two Local units: Example 1 presents an instance where two separate applications using the same MultiPac output power require the same temperature setpoint but unique feedback sources. Mode: Electrical Priority (Grid Connect or Stand Alone operation) Settings: CHP Setpoint source – Master CHP Feedback source – Local Scenario: Master controls water temperature setpoint for the entire MultiPac, but each C60 ICHP uses its own temperature feedback source. Note that each C60 ICHP System can be set to use its own inlet RTD, outlet RTD, or an external temperature sensor for its temperature feedback source. 480007-001 Rev D (June 2005) Page 4 of 21 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment ratings, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Application Guide - Model C60 Integrated CHP (ICHP)
