PDF Publication Title:
Text from PDF Page: 009

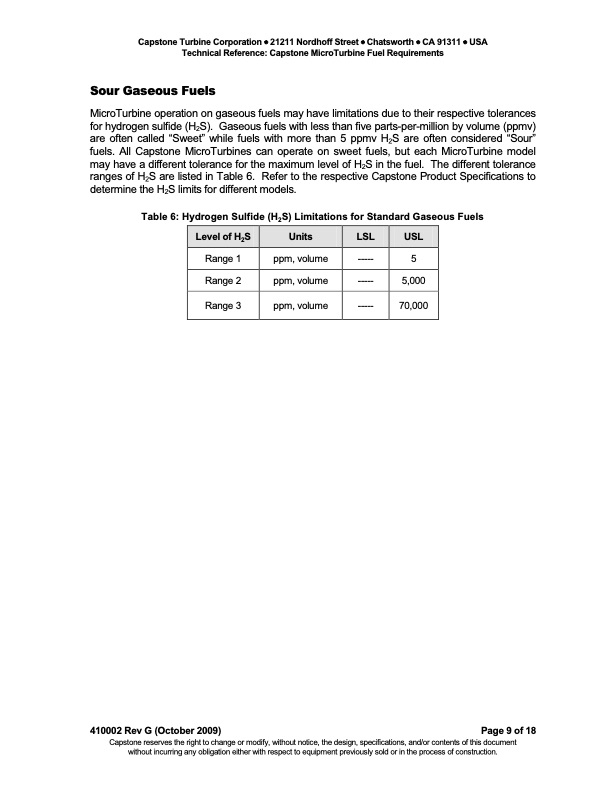

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone MicroTurbine Fuel Requirements Sour Gaseous Fuels MicroTurbine operation on gaseous fuels may have limitations due to their respective tolerances for hydrogen sulfide (H2S). Gaseous fuels with less than five parts-per-million by volume (ppmv) are often called “Sweet” while fuels with more than 5 ppmv H2S are often considered “Sour” fuels. All Capstone MicroTurbines can operate on sweet fuels, but each MicroTurbine model may have a different tolerance for the maximum level of H2S in the fuel. The different tolerance ranges of H2S are listed in Table 6. Refer to the respective Capstone Product Specifications to determine the H2S limits for different models. Table 6: Hydrogen Sulfide (H2S) Limitations for Standard Gaseous Fuels Level of H2S Units LSL USL Range 1 Range 2 Range 3 ppm, volume ppm, volume ppm, volume ----- ----- ----- 5 5,000 70,000 410002 Rev G (October 2009) Page 9 of 18 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone MicroTurbine Fuel Requirements
PDF Search Title:
Technical Reference Capstone MicroTurbine Fuel RequirementsOriginal File Name Searched:
410002G_Fuel_Requirements_TR.pdfDIY PDF Search: Google It | Yahoo | Bing
