PDF Publication Title:
Text from PDF Page: 007

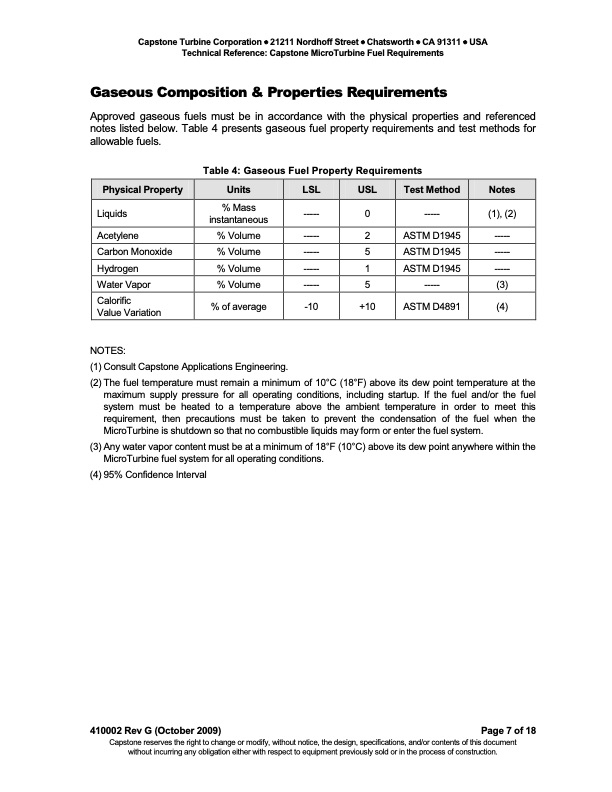

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone MicroTurbine Fuel Requirements Gaseous Composition & Properties Requirements Approved gaseous fuels must be in accordance with the physical properties and referenced notes listed below. Table 4 presents gaseous fuel property requirements and test methods for allowable fuels. Table 4: Gaseous Fuel Property Requirements Physical Property Units LSL USL Test Method Notes Liquids Acetylene Carbon Monoxide Hydrogen Water Vapor Calorific Value Variation NOTES: % Mass instantaneous % Volume % Volume % Volume % Volume % of average ----- 0 ----- 2 ----- 5 ----- 1 ----- 5 -10 +10 ----- ASTM D1945 ASTM D1945 ASTM D1945 ----- ASTM D4891 (1), (2) ----- ----- ----- (3) (4) (1) Consult Capstone Applications Engineering. (2) The fuel temperature must remain a minimum of 10°C (18°F) above its dew point temperature at the maximum supply pressure for all operating conditions, including startup. If the fuel and/or the fuel system must be heated to a temperature above the ambient temperature in order to meet this requirement, then precautions must be taken to prevent the condensation of the fuel when the MicroTurbine is shutdown so that no combustible liquids may form or enter the fuel system. (3) Any water vapor content must be at a minimum of 18°F (10°C) above its dew point anywhere within the MicroTurbine fuel system for all operating conditions. (4) 95% Confidence Interval 410002 Rev G (October 2009) Page 7 of 18 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone MicroTurbine Fuel Requirements
PDF Search Title:
Technical Reference Capstone MicroTurbine Fuel RequirementsOriginal File Name Searched:
410002G_Fuel_Requirements_TR.pdfDIY PDF Search: Google It | Yahoo | Bing
