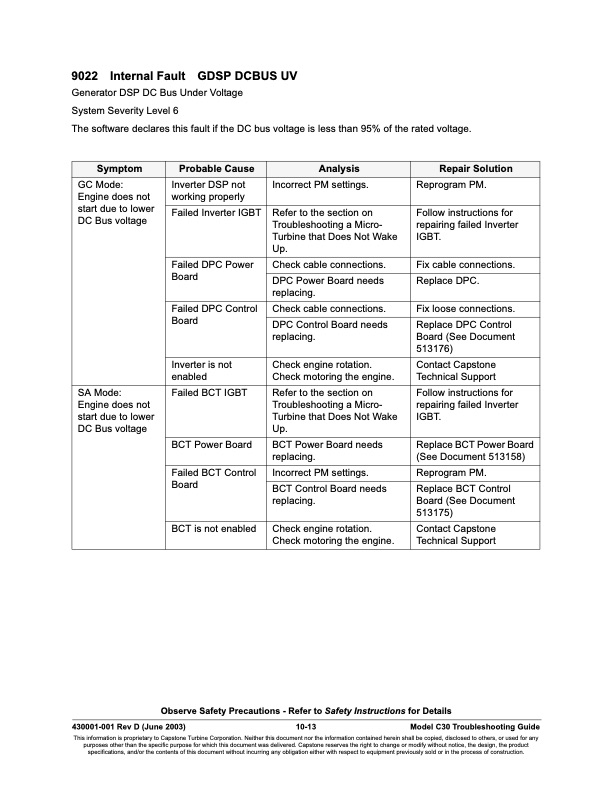

9022 Internal Fault GDSP DCBUS UV Generator DSP DC Bus Under Voltage System Severity Level 6 The software declares this fault if the DC bus voltage is less than 95% of the rated voltage. Symptom Probable Cause Analysis Repair Solution GC Mode: Engine does not start due to lower DC Bus voltage Inverter DSP not working properly Incorrect PM settings. Reprogram PM. Failed Inverter IGBT Refer to the section on Troubleshooting a Micro- Turbine that Does Not Wake Up. Follow instructions for repairing failed Inverter IGBT. Failed DPC Power Board Check cable connections. Fix cable connections. DPC Power Board needs replacing. Replace DPC. Failed DPC Control Board Check cable connections. Fix loose connections. DPC Control Board needs replacing. Replace DPC Control Board (See Document 513176) Inverter is not enabled Check engine rotation. Check motoring the engine. Contact Capstone Technical Support SA Mode: Engine does not start due to lower DC Bus voltage Failed BCT IGBT Refer to the section on Troubleshooting a Micro- Turbine that Does Not Wake Up. Follow instructions for repairing failed Inverter IGBT. BCT Power Board BCT Power Board needs replacing. Replace BCT Power Board (See Document 513158) Failed BCT Control Board Incorrect PM settings. Reprogram PM. BCT Control Board needs replacing. Replace BCT Control Board (See Document 513175) BCT is not enabled Check engine rotation. Check motoring the engine. Contact Capstone Technical Support Observe Safety Precautions - Refer to Safety Instructions for Details 430001-001 Rev D (June 2003) 10-13 Model C30 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | SERIES 9000 FAULT CODES Generator Faults
