Text from PDF Page: 018

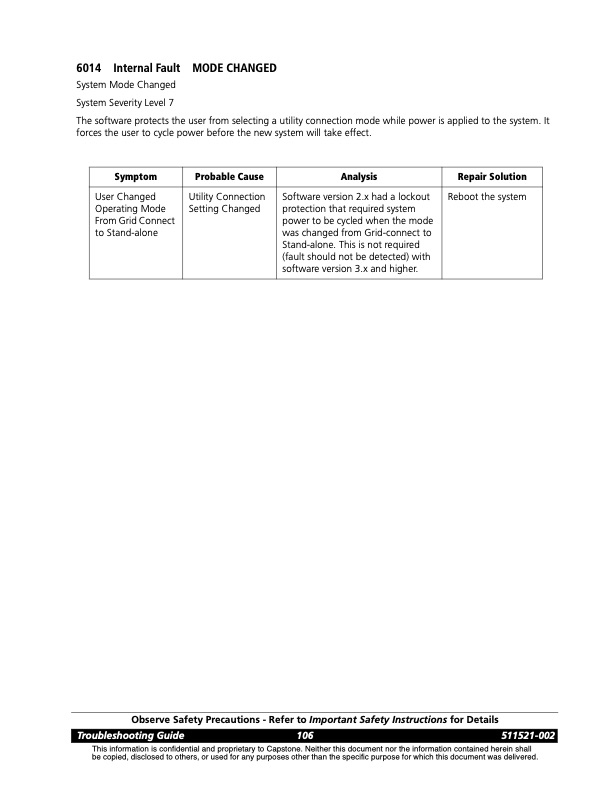

6014 Internal Fault MODE CHANGED System Mode Changed System Severity Level 7 The software protects the user from selecting a utility connection mode while power is applied to the system. It forces the user to cycle power before the new system will take effect. Symptom Probable Cause Analysis Repair Solution User Changed Operating Mode From Grid Connect to Stand-alone Utility Connection Setting Changed Software version 2.x had a lockout protection that required system power to be cycled when the mode was changed from Grid-connect to Stand-alone. This is not required (fault should not be detected) with software version 3.x and higher. Reboot the system Observe Safety Precautions - Refer to Important Safety Instructions for Details Troubleshooting Guide 106 511521-002 This information is confidential and proprietary to Capstone. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered.PDF Image | SERIES 6000 FAULT CODES Operational Faults
