PDF Publication Title:
Text from PDF Page: 015

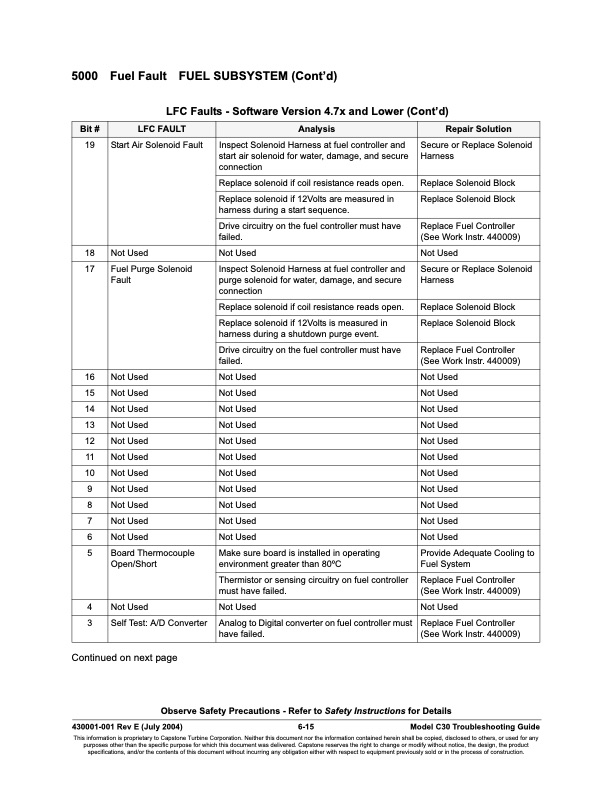

5000 Fuel Fault FUEL SUBSYSTEM (Contíd) LFC Faults - Software Version 4.7x and Lower (Contíd) Bit # LFC FAULT Analysis Repair Solution 19 Start Air Solenoid Fault Inspect Solenoid Harness at fuel controller and start air solenoid for water, damage, and secure connection Secure or Replace Solenoid Harness Replace solenoid if coil resistance reads open. Replace Solenoid Block Replace solenoid if 12Volts are measured in harness during a start sequence. Replace Solenoid Block Drive circuitry on the fuel controller must have failed. Replace Fuel Controller (See Work Instr. 440009) 18 Not Used Not Used Not Used 17 Fuel Purge Solenoid Fault Inspect Solenoid Harness at fuel controller and purge solenoid for water, damage, and secure connection Secure or Replace Solenoid Harness Replace solenoid if coil resistance reads open. Replace Solenoid Block Replace solenoid if 12Volts is measured in harness during a shutdown purge event. Replace Solenoid Block Drive circuitry on the fuel controller must have failed. Replace Fuel Controller (See Work Instr. 440009) 16 Not Used Not Used Not Used 15 Not Used Not Used Not Used 14 Not Used Not Used Not Used 13 Not Used Not Used Not Used 12 Not Used Not Used Not Used 11 Not Used Not Used Not Used 10 Not Used Not Used Not Used 9 Not Used Not Used Not Used 8 Not Used Not Used Not Used 7 Not Used Not Used Not Used 6 Not Used Not Used Not Used 5 Board Thermocouple Open/Short Make sure board is installed in operating environment greater than 80oC Provide Adequate Cooling to Fuel System Thermistor or sensing circuitry on fuel controller must have failed. Replace Fuel Controller (See Work Instr. 440009) 4 Not Used Not Used Not Used 3 Self Test: A/D Converter Analog to Digital converter on fuel controller must have failed. Replace Fuel Controller (See Work Instr. 440009) Continued on next page Observe Safety Precautions - Refer to Safety Instructions for Details 430001-001 Rev E (July 2004) 6-15 Model C30 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | SERIES 5000 FAULT CODES Package Faults
