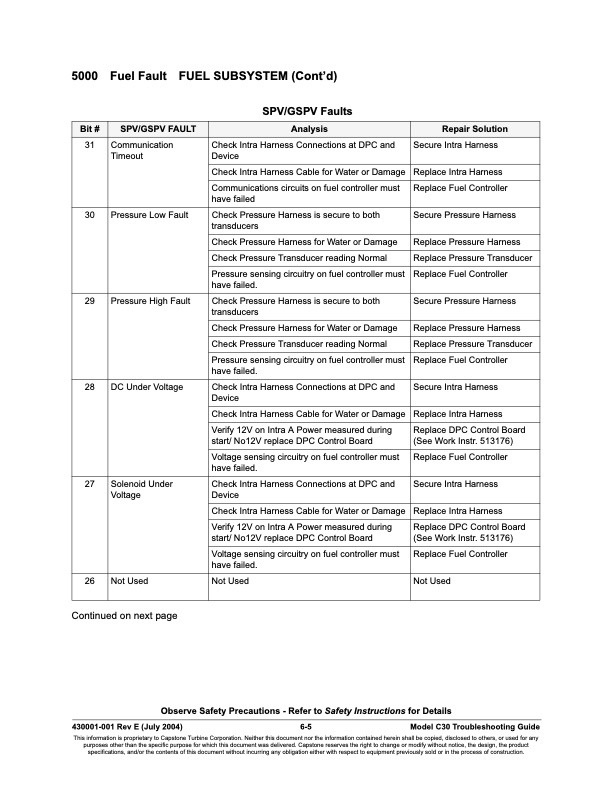

5000 Fuel Fault FUEL SUBSYSTEM (Contíd) SPV/GSPV Faults Bit # SPV/GSPV FAULT Analysis Repair Solution 31 Communication Timeout Check Intra Harness Connections at DPC and Device Secure Intra Harness Check Intra Harness Cable for Water or Damage Replace Intra Harness Communications circuits on fuel controller must have failed Replace Fuel Controller 30 Pressure Low Fault Check Pressure Harness is secure to both transducers Secure Pressure Harness Check Pressure Harness for Water or Damage Replace Pressure Harness Check Pressure Transducer reading Normal Replace Pressure Transducer Pressure sensing circuitry on fuel controller must have failed. Replace Fuel Controller 29 Pressure High Fault Check Pressure Harness is secure to both transducers Secure Pressure Harness Check Pressure Harness for Water or Damage Replace Pressure Harness Check Pressure Transducer reading Normal Replace Pressure Transducer Pressure sensing circuitry on fuel controller must have failed. Replace Fuel Controller 28 DC Under Voltage Check Intra Harness Connections at DPC and Device Secure Intra Harness Check Intra Harness Cable for Water or Damage Replace Intra Harness Verify 12V on Intra A Power measured during start/ No12V replace DPC Control Board Replace DPC Control Board (See Work Instr. 513176) Voltage sensing circuitry on fuel controller must have failed. Replace Fuel Controller 27 Solenoid Under Voltage Check Intra Harness Connections at DPC and Device Secure Intra Harness Check Intra Harness Cable for Water or Damage Replace Intra Harness Verify 12V on Intra A Power measured during start/ No12V replace DPC Control Board Replace DPC Control Board (See Work Instr. 513176) Voltage sensing circuitry on fuel controller must have failed. Replace Fuel Controller 26 Not Used Not Used Not Used Continued on next page Observe Safety Precautions - Refer to Safety Instructions for Details 430001-001 Rev E (July 2004) 6-5 Model C30 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | SERIES 5000 FAULT CODES Package Faults
