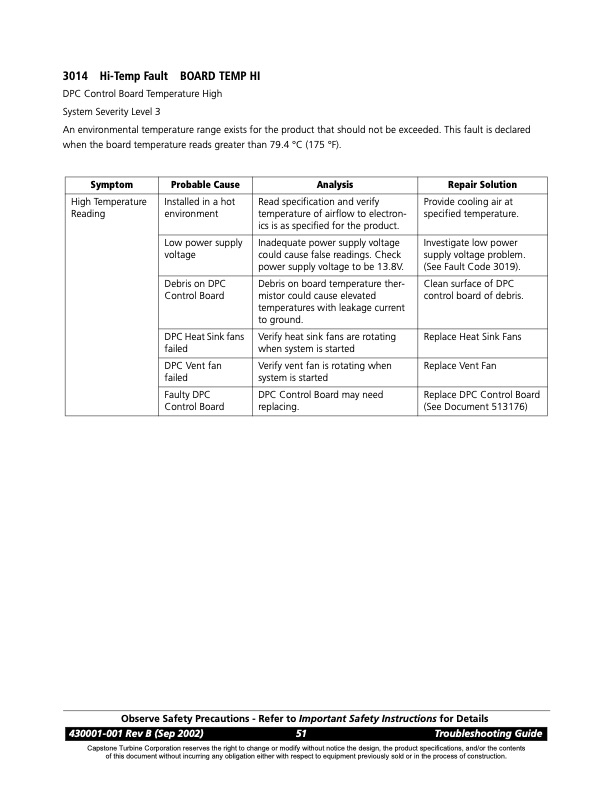

3014 Hi-Temp Fault BOARD TEMP HI DPC Control Board Temperature High System Severity Level 3 An environmental temperature range exists for the product that should not be exceeded. This fault is declared when the board temperature reads greater than 79.4 °C (175 °F). Symptom Probable Cause Analysis Repair Solution High Temperature Reading Installed in a hot environment Read specification and verify temperature of airflow to electron- ics is as specified for the product. Provide cooling air at specified temperature. Low power supply voltage Inadequate power supply voltage could cause false readings. Check power supply voltage to be 13.8V. Investigate low power supply voltage problem. (See Fault Code 3019). Debris on DPC Control Board Debris on board temperature ther- mistor could cause elevated temperatures with leakage current to ground. Clean surface of DPC control board of debris. DPC Heat Sink fans failed Verify heat sink fans are rotating when system is started Replace Heat Sink Fans DPC Vent fan failed Verify vent fan is rotating when system is started Replace Vent Fan Faulty DPC Control Board DPC Control Board may need replacing. Replace DPC Control Board (See Document 513176) Observe Safety Precautions - Refer to Important Safety Instructions for Details 430001-001 Rev B (Sep 2002) 51 Troubleshooting Guide Capstone Turbine Corporation reserves the right to change or modify without notice the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | SERIES 3000 FAULT CODES Sensor Faults
