Text from PDF Page: 009

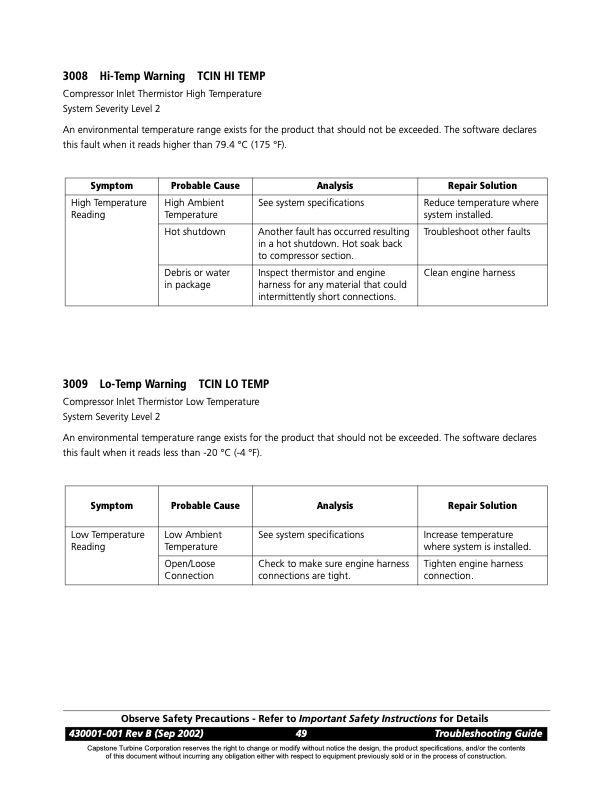

3008 Hi-Temp Warning TCIN HI TEMP Compressor Inlet Thermistor High Temperature System Severity Level 2 An environmental temperature range exists for the product that should not be exceeded. The software declares this fault when it reads higher than 79.4 °C (175 °F). Symptom Probable Cause Analysis Repair Solution High Temperature Reading High Ambient Temperature See system specifications Reduce temperature where system installed. Hot shutdown Another fault has occurred resulting in a hot shutdown. Hot soak back to compressor section. Troubleshoot other faults Debris or water in package Inspect thermistor and engine harness for any material that could intermittently short connections. Clean engine harness 3009 Lo-Temp Warning TCIN LO TEMP Compressor Inlet Thermistor Low Temperature System Severity Level 2 An environmental temperature range exists for the product that should not be exceeded. The software declares this fault when it reads less than -20 °C (-4 °F). Symptom Probable Cause Analysis Repair Solution Low Temperature Reading Low Ambient Temperature See system specifications Increase temperature where system is installed. Open/Loose Connection Check to make sure engine harness connections are tight. Tighten engine harness connection. Observe Safety Precautions - Refer to Important Safety Instructions for Details 430001-001 Rev B (Sep 2002) 49 Troubleshooting Guide Capstone Turbine Corporation reserves the right to change or modify without notice the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | SERIES 3000 FAULT CODES Sensor Faults
